Walkie Talkies

Motorola APX 8000

APX P25 Multiband Portable Radio

Contact for Price

Minimum Order Quantity:1 unit

The Motorola APX 8000 is the industry's first quad-band portable P25 radio, delivering unmatched interoperability across VHF, UHF1, UHF2, and 700/800 MHz bands in a single device. With P25 Phase 2 TDMA technology, IP68 waterproof rating (submersible to 2 meters for 2 hours), and advanced AES-256 encryption, the APX 8000 provides mission-critical communications for first responders, law enforcement, fire services, and military operations. The full alphanumeric keypad and color display enable intuitive operation even in challenging conditions.

IP68 Rated (2m submersion for 2 hours)

MIL-STD-810 C/D/E/F/G Certified

FIPS 140-2 Level 3

FIPS 197 Compliant

FCC Certified

IC Certified

P25 CAI Compliant

ASTRO 25 Compatible

CE Marked

Download Datasheet (PDF)

Key Features

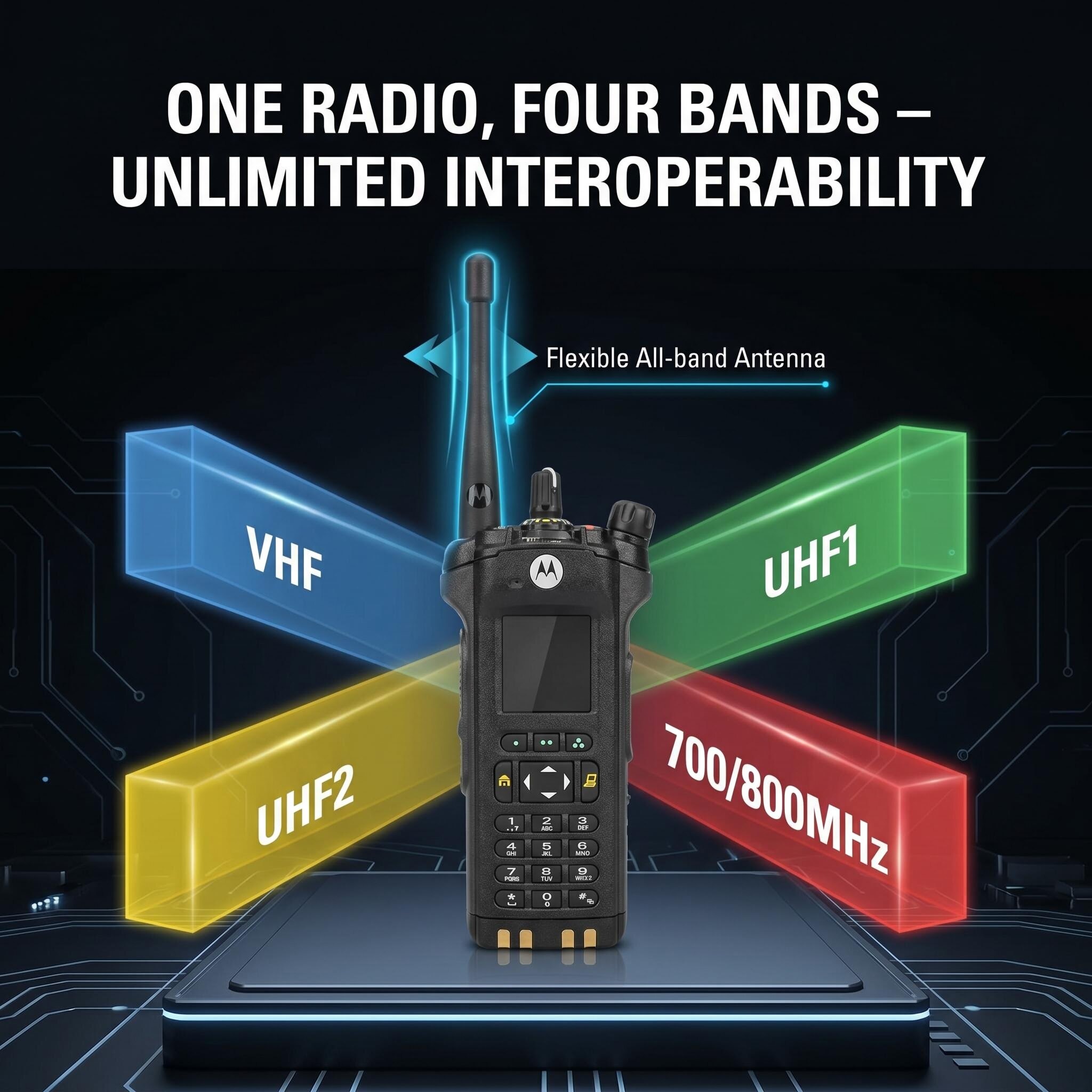

Quad-Band Interoperability

One radio covers four frequency bands: VHF (136-174 MHz), UHF1 (300-400 MHz), UHF2 (400-520 MHz), and 700/800 MHz (764-870 MHz). Eliminates need to carry multiple radios for cross-band operations. Flexible all-band antenna optimizes performance across all frequencies.

P25 Phase 2 TDMA

Dual-slot TDMA technology doubles voice capacity within 12.5 kHz bandwidth. Backward compatible with P25 Phase 1 FDMA and analog systems. Provides clear digital audio with extended battery life compared to analog operation.

IP68 Waterproof Rating

Submersible to 2 meters underwater for up to 2 hours. Exceeds IP67 standards for water immersion. Fully sealed construction protects against dust, sand, and harsh environmental conditions. Ideal for marine, firefighting, and extreme weather operations.

Mission-Critical Security

Hardware-based 256-bit AES encryption with FIPS 140-2 Level 3 certification. Optional DES, DES-XL, DES-OFB algorithms. Secure key storage with tamper detection. Over-the-Air Rekeying (OTAR) capability for remote key management.

Integrated GPS & Location

High-sensitivity GPS/GLONASS receiver provides accurate personnel tracking and location awareness. Supports man-down alerts and automatic position reporting. Enables dispatchers to monitor officer safety and coordinate responses effectively.

Rugged MIL-STD Design

MIL-STD-810 C/D/E/F/G certified for extreme shock, vibration, temperature (-30°C to +60°C), humidity, salt fog, and blowing dust. Impact-resistant housing withstands drops onto concrete. Designed for the toughest mission environments.

Technical Specifications

Product SeriesMotorola APX 8000 P25 Multiband Portable Radio

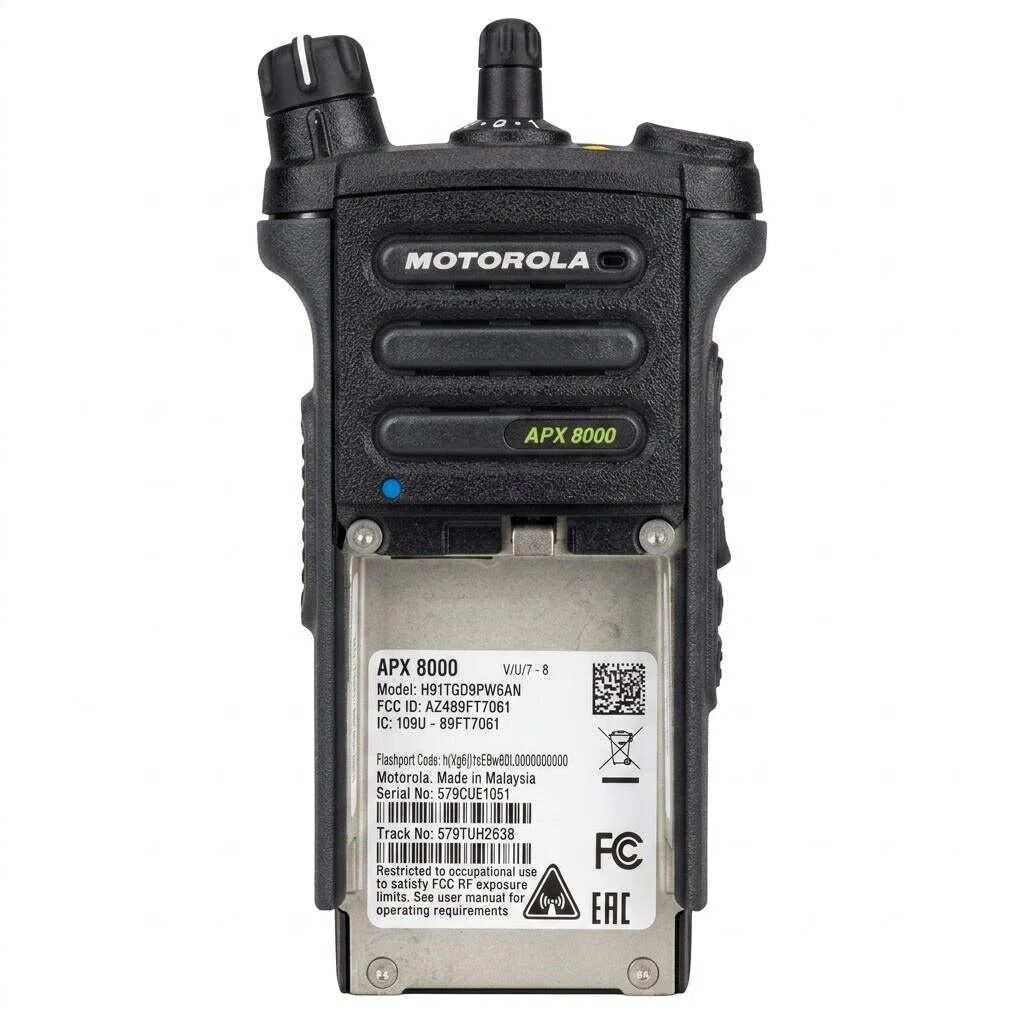

Model NumberH91TGD9PW6AN

Frequency RangeVHF: 136-174 MHz | UHF1: 300-400 MHz | UHF2: 400-520 MHz | 700/800 MHz: 764-870 MHz

Operating ModeP25 Phase 1 FDMA / Phase 2 TDMA

Channel Capacity3000 channels

Channel Spacing25/12.5 kHz (analog) | 12.5 kHz (digital)

RF Output Power (VHF)1-5W (adjustable)

RF Output Power (UHF1/UHF2)1-5W (adjustable)

RF Output Power (700/800 MHz)1-3W (adjustable)

Modulation TypeC4FM (digital), 4FSK, 16K0F3E (analog)

Digital ProtocolAPCO P25 Phase 1 FDMA / Phase 2 TDMA, 9600 Baud

Analog ConventionalMDC-1200, Quik Call II, PL/DPL

Digital ConventionalAPCO P25, ASTRO 25

Trunking StandardsSmartZone, SmartZone Omnilink, SmartNet

Frequency Stability (-30°C to +60°C)±0.0002%

Emissions (Conducted)-75/-85 dBc

Audio Response+1, -3 dB (EIA)

FM Hum & Noise (25 kHz)-50 to -53 dB

FM Hum & Noise (12.5 kHz)-48 to -52 dB

Audio Distortion2% @ rated power

Receiver Sensitivity (Analog)-120 dBm (12 dB SINAD)

Receiver Sensitivity (Digital)-120 dBm (5% BER)

Selectivity (25 kHz)85 dB

Selectivity (12.5 kHz)75 dB

Intermodulation (25 kHz)82-86 dB

Intermodulation (12.5 kHz)82-85 dB

Spurious Rejection91-95 dB

Audio Output Power2W at 3% distortion

DisplayColor LCD with backlight | 178° viewing angle | Automatic brightness adjustment

KeypadFull alphanumeric keypad | Tactile feedback | Backlit keys for night operation

Programmable ButtonsUp to 16 programmable buttons for quick function access

GPS Channels12 channels (GPS/GLONASS)

GPS Tracking Sensitivity-153 dBm

GPS Accuracy<10 meters (95%)

GPS Cold Start<60 seconds (95%)

GPS Hot Start<10 seconds (95%)

GPS ModeAutonomous (Non-Assisted) GPS

Encryption AlgorithmsADP / 256-bit AES / DES / DES-XL / DES-OFB / DVP-XL

Encryption Capacity8 algorithms

Encryption Keys per RadioModule capable of storing 1024 keys (64 CKR or 16 PID)

Encryption StandardsFIPS 140-2 Level 3, FIPS 197

Key StorageTamper protected volatile or non-volatile memory

Key ErasureKeyboard command and tamper detection

Digital ID Capacity10,000,000 Conventional / 48,000 Trunking

Network Access Codes4,096 network site addresses

User Group Addresses65,000 Conventional / 4,094 Trunking (P25 CAI)

Signaling Rate9.6 kbps

Error CorrectionGolay, BCH, Reed-Solomon codes

Battery TypeRechargeable Li-Ion IMPRES 2

Battery Capacity3000 mAh (standard) | 4800 mAh (extended)

Standby Time (3000 mAh)Up to 18 hours (5/5/90 duty cycle)

Talk Time (3000 mAh)Up to 14 hours (5/5/90 duty cycle)

Charging Time<3 hours (rapid charger)

Dimensions (with standard battery)6.1 x 2.4 x 1.6 in (155 x 61 x 41 mm)

Weight (with standard battery)Approx. 1.3 lbs (590 g)

Operating Temperature-30°C to +60°C

Storage Temperature-40°C to +85°C

Water & Dust ProtectionIP68 (submersible to 2m for 2 hours)

Military StandardMIL-STD-810 C/D/E/F/G (Low Pressure, High/Low Temperature, Temperature Shock, Solar Radiation, Rain, Humidity, Salt Fog, Blowing Dust/Sand, Vibration, Shock, Immersion)

FLASHport MemoryBuilt-in support

Programming SoftwareWindows Customer Programming Software (CPS)

USB CommunicationsSupported via accessory connector

BluetoothBluetooth 4.0 LE for wireless accessories

Wi-Fi802.11 b/g/n for firmware updates and programming

NFCNear Field Communication for intelligent accessories

Man-Down AlertAutomatic alert if radio remains motionless for preset duration

Lone WorkerPeriodic check-in reminders with escalation if no response

Emergency ButtonDedicated orange emergency button (programmable)

Text MessagingPredefined and free-form text messaging

Antenna ConnectorTNC female

Accessory Connector16-pin circular connector

Warranty1 year manufacturer warranty
