Walkie Talkies

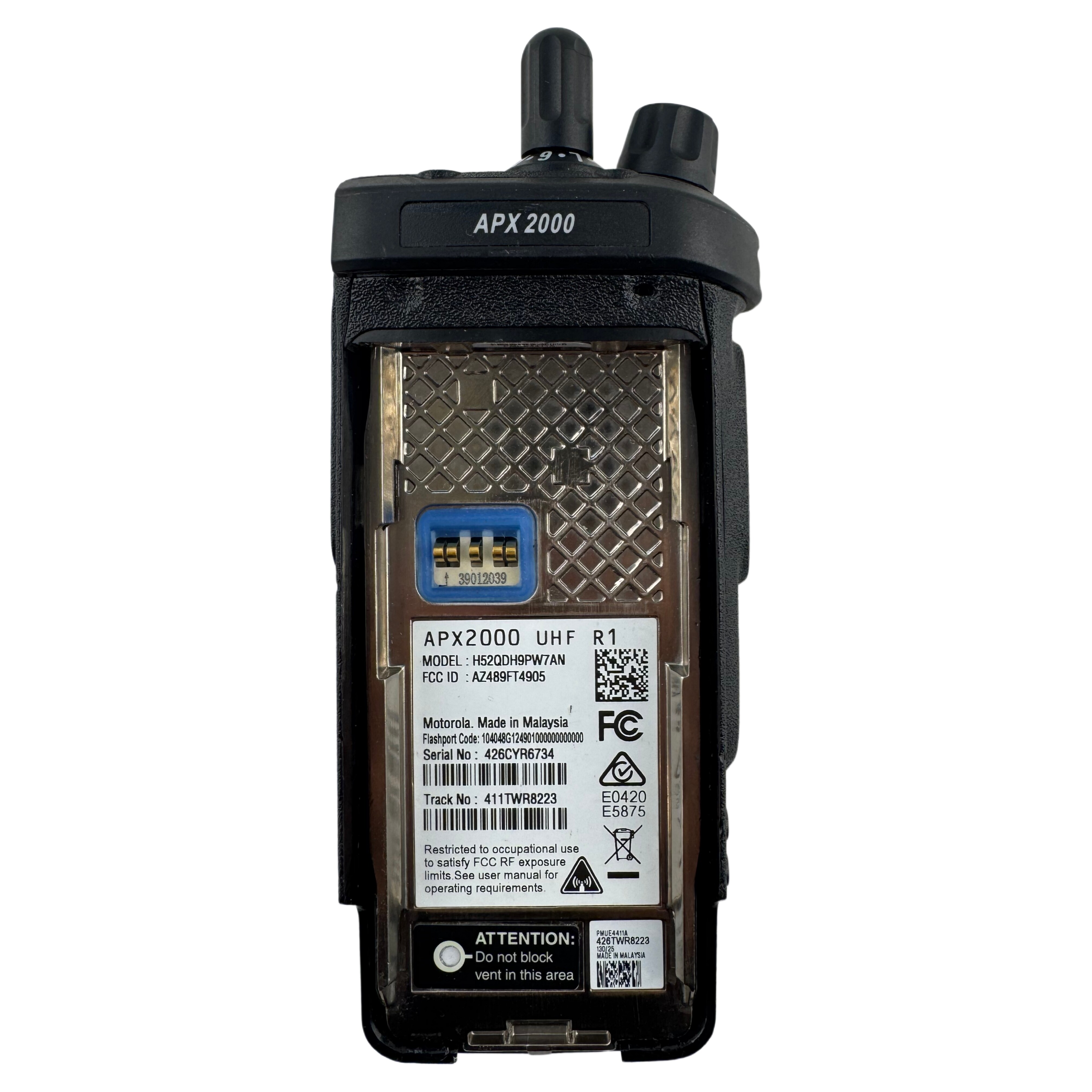

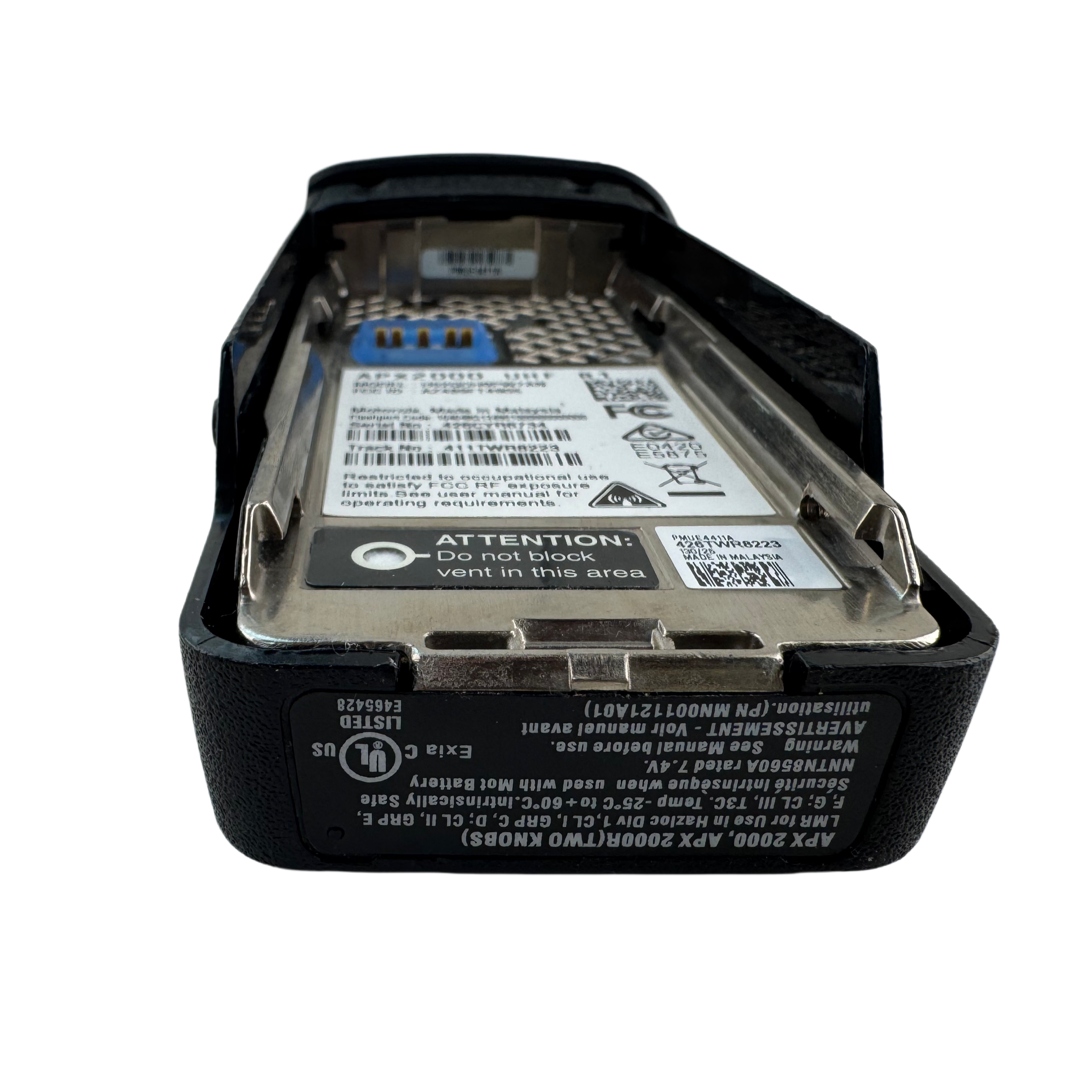

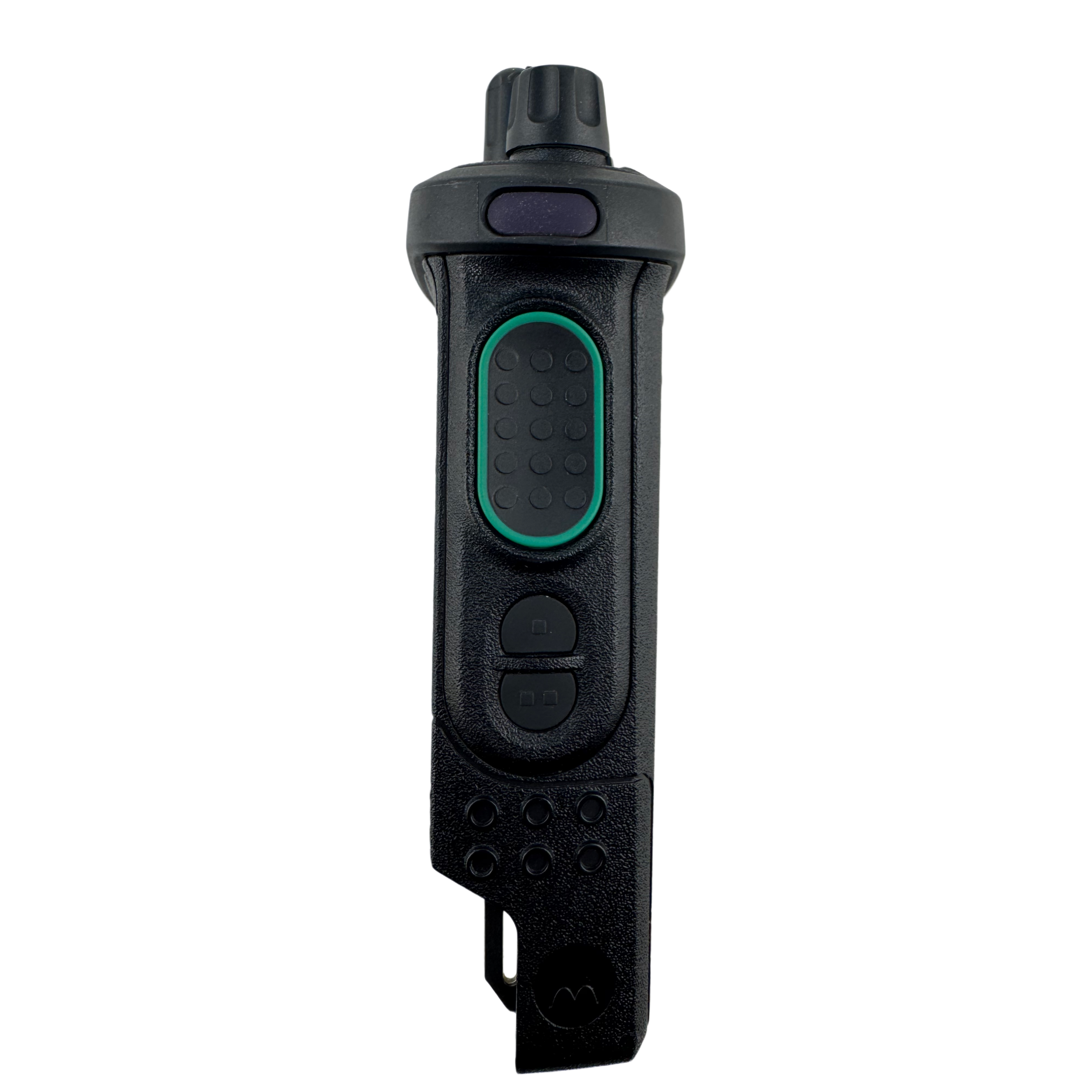

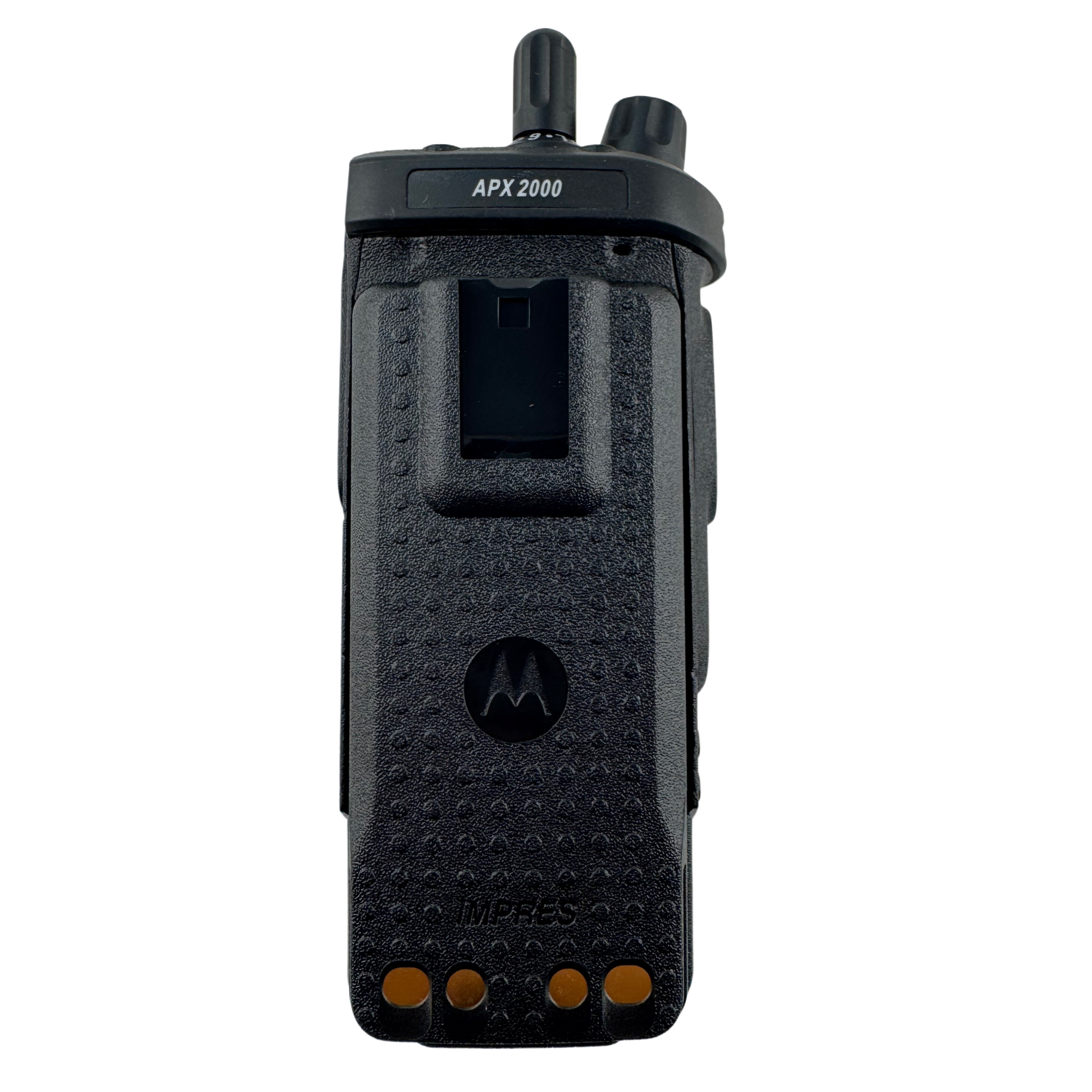

Motorola APX 2000

APX P25 Portable Radio

Contact for Price

Minimum Order Quantity:1 unit

The Motorola APX 2000 is the industry's smallest P25 Phase 2 portable radio, delivering uncompromising quality and exceptional performance in the toughest conditions. With advanced noise cancellation, IP67 waterproof rating, and integrated GPS, the APX 2000 ensures clear, reliable communications for public safety, industrial, and commercial users.

IP67 Rated (1m/30min)

MIL-STD-810 C/D/E/F/G

FCC Certified

Industry Canada Certified

P25 CAI Compliant

ASTRO 25 Compatible

Download Datasheet (PDF)

Key Features

Superior Audio Intelligence

Dual-microphone noise canceling technology suppresses background noise from diesel engines, sirens, and heavy equipment. 0.5W high-power speaker delivers loud, clear audio even in noisy environments.

Rugged & Reliable

IP67 waterproof (submersible 1m/30min) and MIL-STD-810 C/D/E/F/G certified for extreme conditions. Tempered glass display resists scratches, abrasions, and chemical solvents.

Advanced Connectivity

Mission Critical Wireless Bluetooth for wireless accessories. Integrated GPS for personnel and asset tracking. Backwards compatible with all Motorola Solutions mission critical radio systems.

P25 Phase 2 Efficiency

Twice the voice capacity with P25 Phase 2 TDMA technology. Supports ASTRO 25 trunking, SmartZone, and conventional configurations for flexible deployment.

Technical Specifications

Frequency Range700/800 MHz (763-776, 793-806, 806-824, 851-870) | VHF 136-174 MHz | UHF R1 380-470 MHz | UHF R2 450-520 MHz

Channel Capacity1000 channels

Channel Spacing25 / 20 / 12.5 kHz

RF Output Power (700/800 MHz)1-3 Watts (adjustable)

RF Output Power (VHF/UHF)1-5 Watts (adjustable)

Modulation TypeC4FM (digital), 4FSK

Digital ProtocolP25 Phase 1 (FDMA) / Phase 2 (TDMA)

VocoderFull rate AMBE (Phase 1) / Half rate AMBE+2 (Phase 2)

Receiver Sensitivity (Analog)0.22 μV typical (12 dB SINAD)

Receiver Sensitivity (Digital)0.19 μV typical (5% BER)

Audio Output Power0.5W internal speaker

Audio Response+1, -3 dB

Audio Distortion1.00% typical

Display TypeFull bitmap color LCD

Display Lines3 lines of text x 14 characters + 1 line of icons + 1 menu line

BacklightWhite LED backlight

KeypadBacklit keypad with 3 soft keys, 4-direction navigation key, Home and Data buttons

Dimensions (Standard Battery)114.5 x 55.04 x 17.85 mm (H x W x D)

Dimensions (2350mAh Battery)114.5 x 55.04 x 23.15 mm (H x W x D)

Weight (Standard Battery)Approx. 160g (without belt clip)

Weight (2350mAh Battery)Approx. 170g (without belt clip)

Battery (Standard)Li-Ion IMPRES 2000 mAh IP67

Battery (Optional)Li-Ion IMPRES 2350/2500/2800 mAh IP67

Operating Temperature-30°C to +60°C

Storage Temperature-40°C to +85°C

Water & Dust ProtectionIP67 (submersible 1m for 30 minutes)

Military StandardMIL-STD-810 C/D/E/F/G

ESD ProtectionIEC 61000-4-2 Level 4

HumidityPer MIL-STD-810

Trunking StandardsASTRO 25 Trunked Operation, SmartZone, SmartZone Omnilink, SmartNet

Conventional SignalingMDC-1200 (analog), APCO P25 (digital)

Bandwidth Support6.25 kHz equivalent / 12.5 kHz / 20 kHz / 25 kHz

GPSIntegrated GPS for location tracking (optional)

BluetoothMission Critical Wireless Bluetooth (optional)

Text MessagingSupported (optional)

Man DownMotion detection alert (optional)

Voice AnnouncementUser programmable

Radio ProfilesMultiple configurable profiles

LightbarIntelligent Lighting notifications

International LanguagesSpanish, French, Portuguese, Russian, Traditional Chinese

Programming SoftwareCustomer Programming Software (CPS) for Windows

FLASHport Memory64 MB

USB SupportYes

Emergency ButtonOrange emergency button (programmable)

Side Buttons3 programmable side buttons

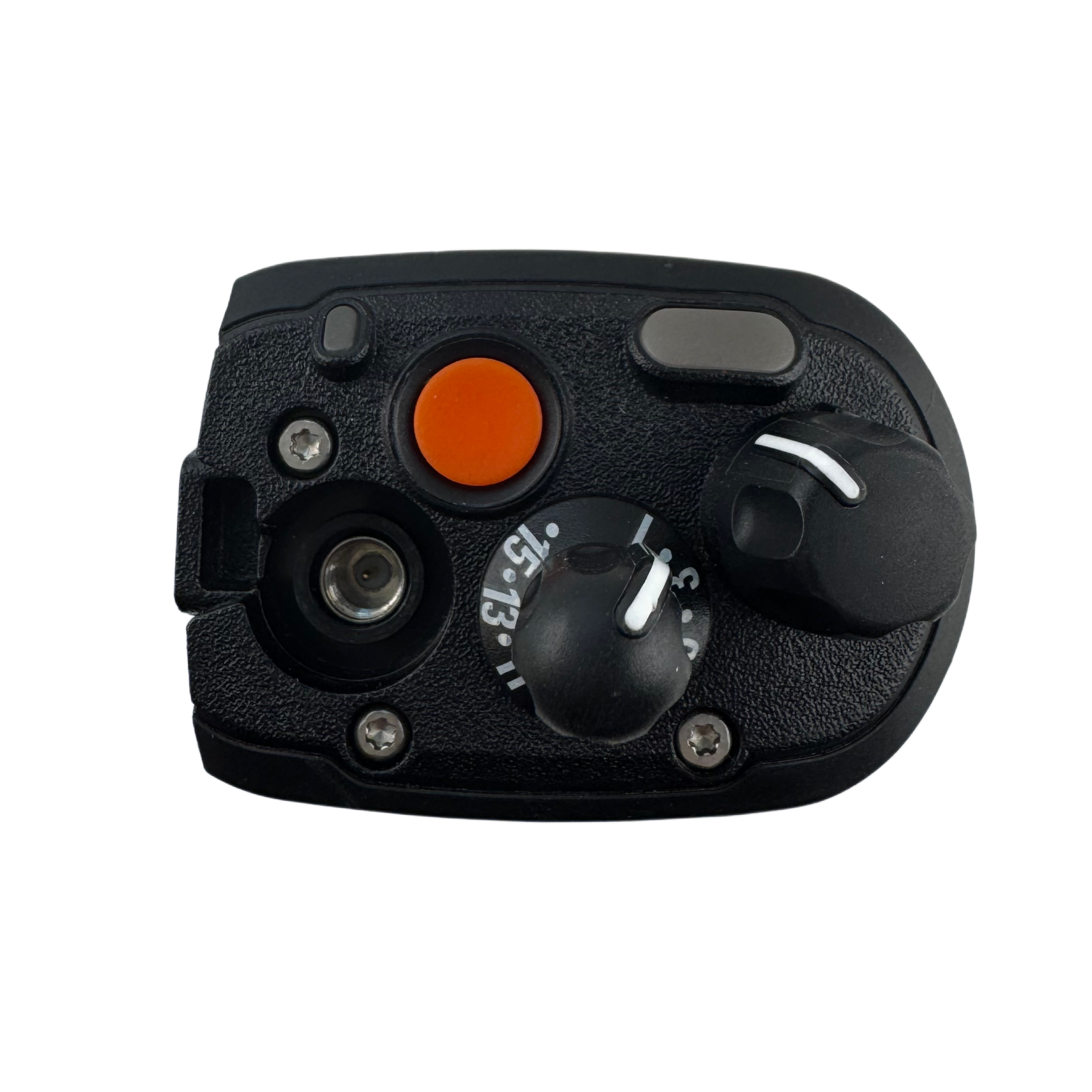

Top ControlsAngled ON/OFF volume control + 16-position rotary switch

FCC ID (700/800 Basic)AZ489FT7050

FCC ID (700/800 Expanded)AZ489FT7049

FCC ID (VHF Basic)AZ489FT3825

FCC ID (VHF Expanded)AZ489FT3828

FCC ID (UHF R1 Basic)AZ489FT4907

FCC ID (UHF R1 Expanded)AZ489FT4905

FCC ID (UHF R2 Basic)AZ489FT4909

FCC ID (UHF R2 Expanded)AZ489FT4910

Emission Designators11K0F3E, 16K0F3E, 8K10F1D, 8K10F1E, 8K10F1W, 20K0F1E

Model Numbers (Basic)H52UCF9PW6AN (700/800) / H52KDF9PW6AN (VHF) / H52QDF9PW6AN (UHF R1) / H52SDF9PW6AN (UHF R2)

Model Numbers (Expanded)H52UCH9PW7AN (700/800) / H52KDH9PW7AN (VHF) / H52QDH9PW7AN (UHF R1) / H52SDH9PW7AN (UHF R2)

Warranty1 year manufacturer warranty
