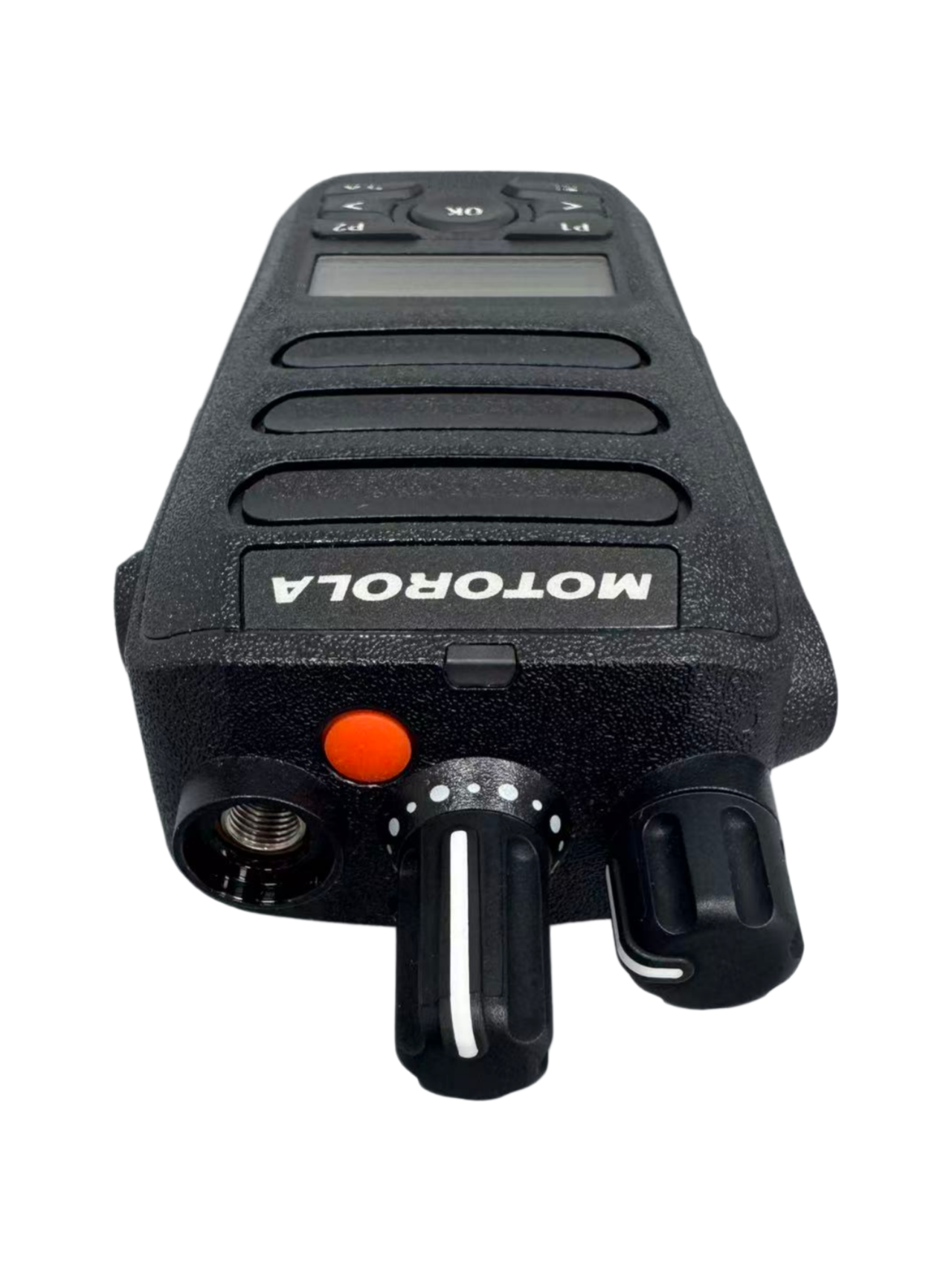

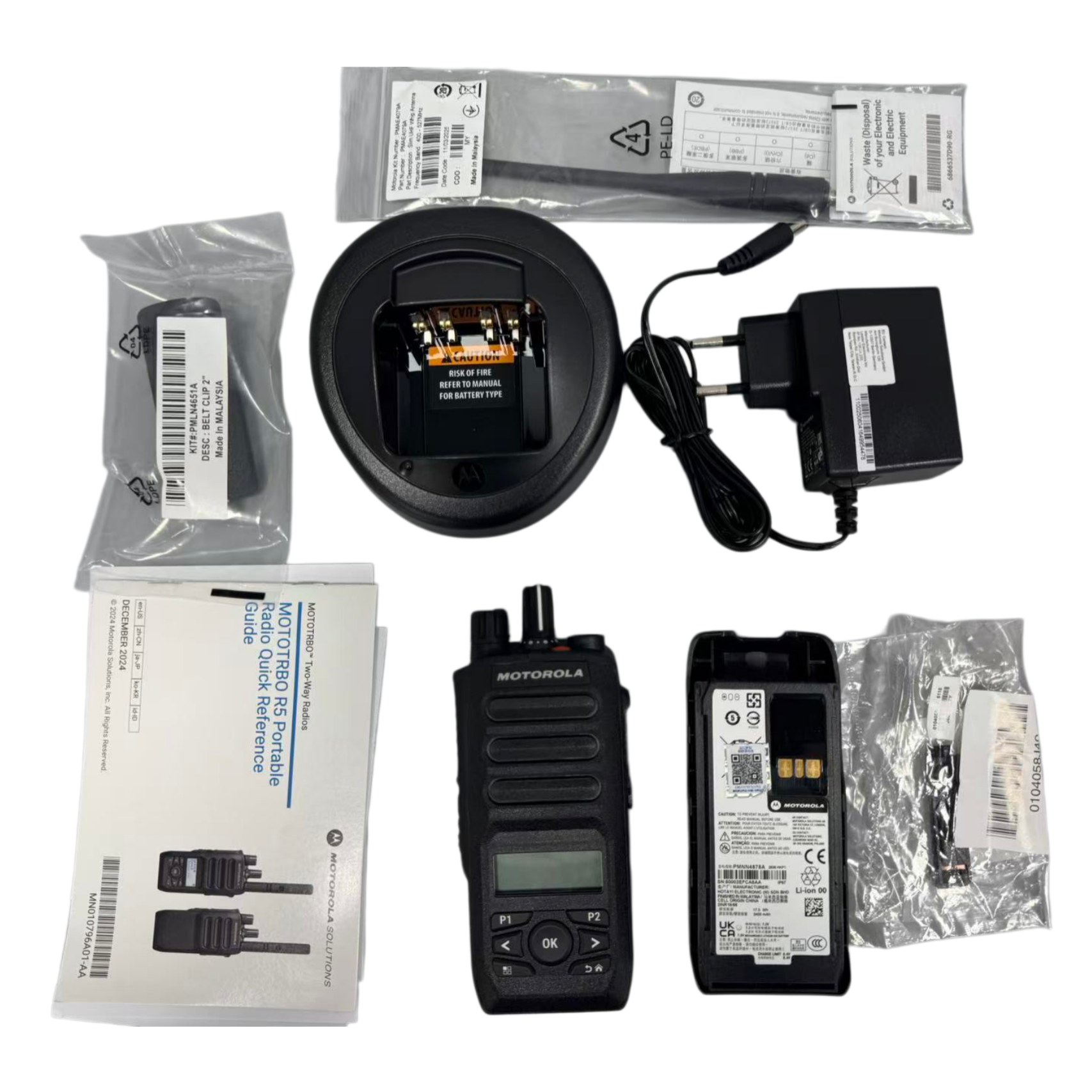

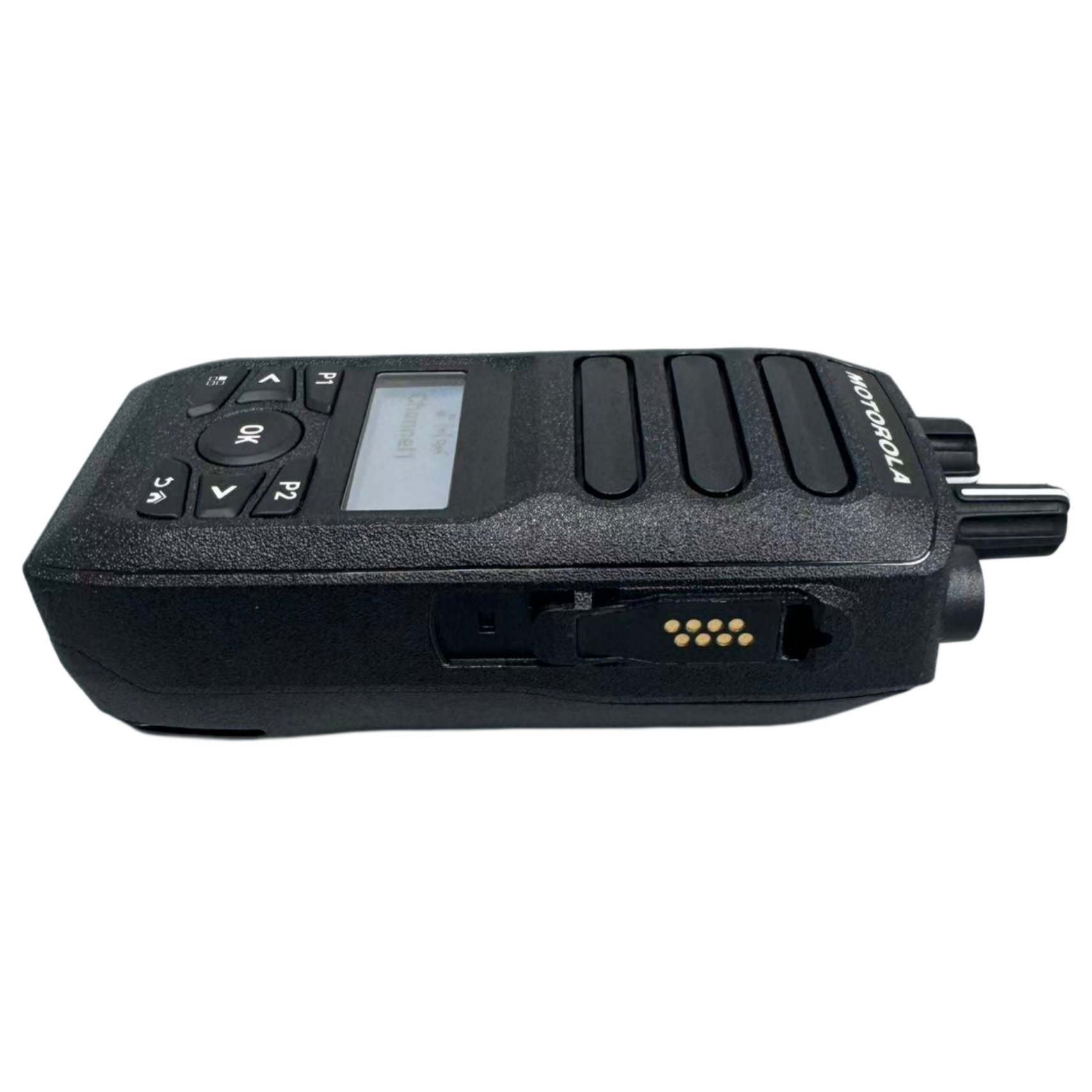

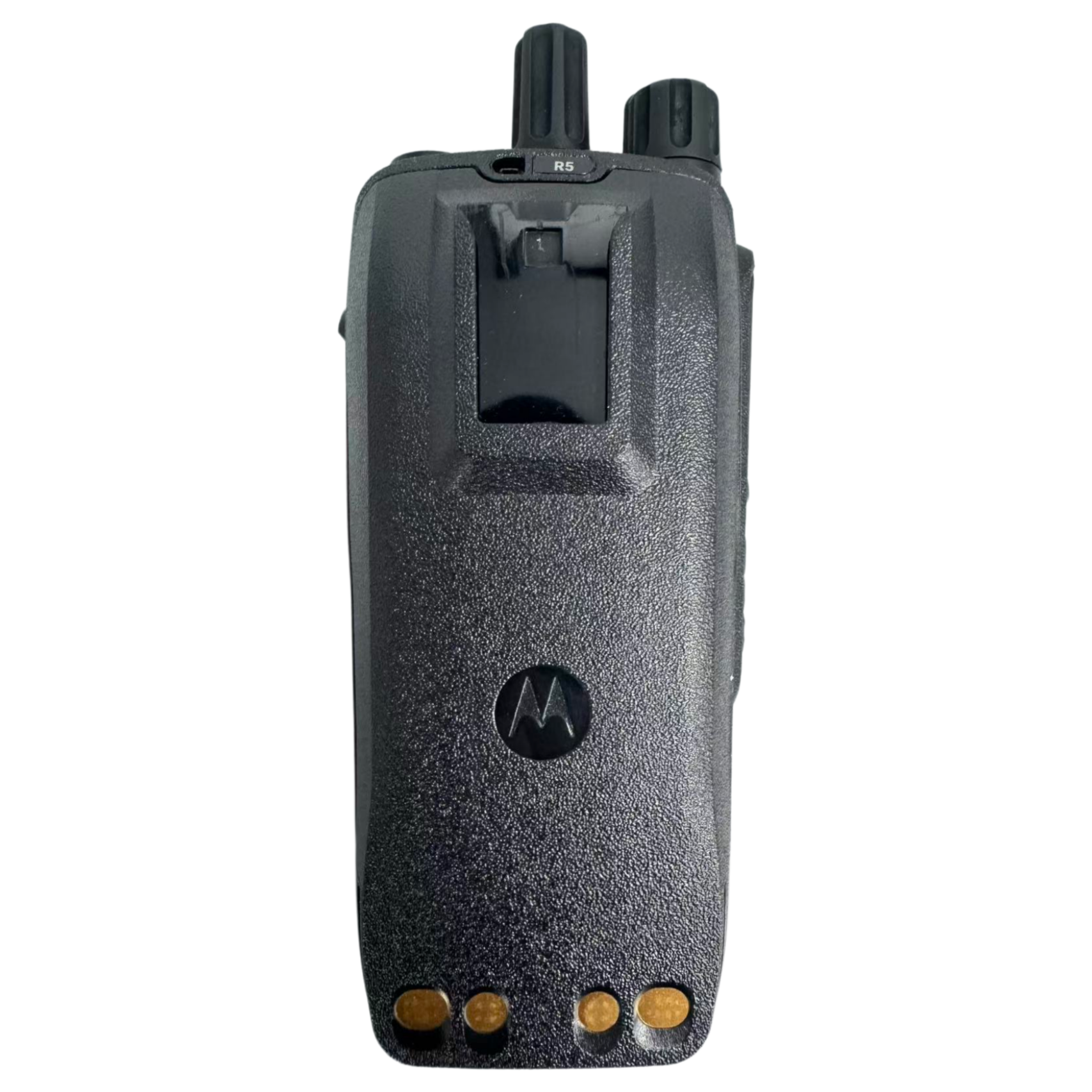

Motorola R5 LKP

MOTOTRBO R5 Limited Keypad Portable Radio

Contact for Price

Minimum Order Quantity:10 units

The MOTOTRBO R5 Limited Keypad (LKP) is a professional portable two-way radio featuring advanced digital technology and limited keypad interface. With 256 channel capacity, IP67 protection, and MIL-STD-810H compliance, the R5 LKP delivers reliable performance in demanding environments. Integrated Wi-Fi 2.4/5.0 GHz with WPA3 security, Bluetooth 5.2, and GNSS location tracking enable seamless connectivity and asset management. The 1.5-inch display provides clear channel information, while AI-powered noise cancellation and smart audio technologies ensure intelligible communication in the noisiest conditions.

IP67 Rated

MIL-STD-810H

TIA4950 Hazloc

ETSI DMR Tier II Compliant

FCC Certified

IC Certified

Wi-Fi CERTIFIED WPA3

Bluetooth 5.2 Qualified

GNSS Integrated

Download Datasheet (PDF)

Key Features

Advanced Digital Technology

TDMA dual-slot technology doubles channel capacity within 12.5 kHz bandwidth. 256 channel capacity across 16 zones supports scalable deployment. DMR Tier II compliant with backward analog compatibility for smooth migration.

Superior Audio Quality

AI training noise removal and SINC+ noise suppression filter background interference. Smart audio with automatic acoustic feedback suppression eliminates whistling. Maximum loudness of 106 phons ensures intelligible communication in extreme noise.

Rugged Construction

IP67 rated protection against dust immersion and water submersion. Built to MIL-STD-810H standards for shock, vibration, and extreme temperature resistance. TIA4950 Hazloc certified for hazardous location operation.

Extended Battery Life

Multiple battery options: 2200mAh (21.5hrs digital/16hrs analog), 2400mAh (24hrs digital/18hrs analog), or 3200mAh (32hrs digital/24hrs analog). Smart battery management with fuel gauge on select models.

Integrated Connectivity

Wi-Fi 2.4/5.0 GHz with WPA3 security protocol enables secure data transmission. Bluetooth 5.2 supports wireless audio accessories and programming. Integrated GNSS provides real-time location tracking and AVL capabilities.

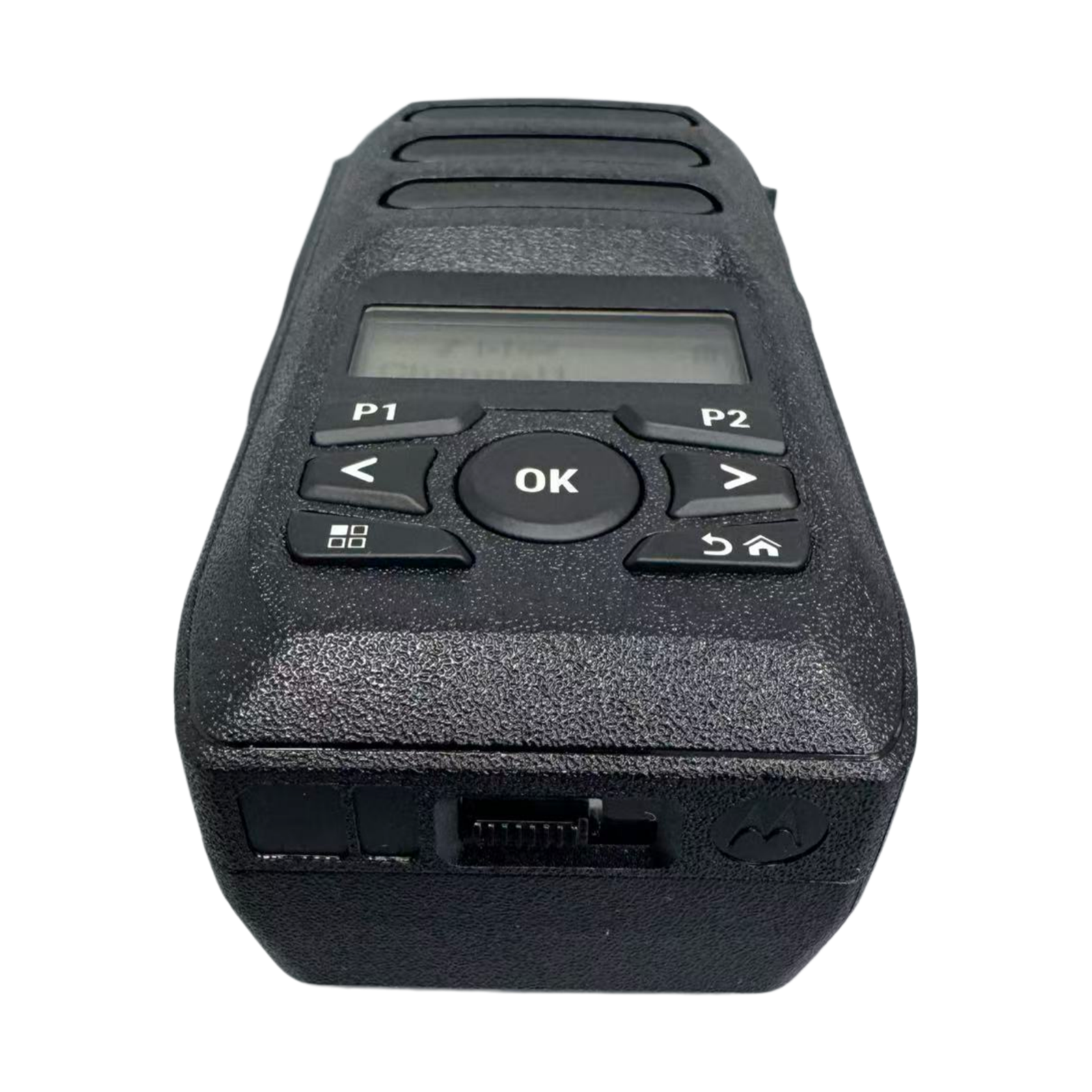

Limited Keypad Interface

1.5-inch 132 x 48 pixel monochrome display with navigation keys and P1/P2 programmable buttons. Limited keypad enables direct channel entry and essential function access without full keyboard complexity.

Technical Specifications

Product SeriesMOTOTRBO R5 Series Portable Radios

ModelR5 LKP - Limited Keypad Model

Frequency RangeVHF: 136-174 MHz / UHF: 400-527 MHz

Channel Capacity256 channels (LKP variant)

Zone Capacity16 zones (16 channels per zone)

Channel Spacing12.5 / 20.0 / 25.0 kHz

Operating Voltage7.5V DC (nominal)

Battery Options2200mAh / 2400mAh / 3200mAh Li-ion IP67

Battery Life (2200mAh, Digital)21.5 hours (5/5/90 duty cycle)

Battery Life (2200mAh, Analog)16 hours (5/5/90 duty cycle)

Battery Life (2400mAh, Digital)24 hours (5/5/90 duty cycle)

Battery Life (2400mAh, Analog)18 hours (5/5/90 duty cycle)

Battery Life (3200mAh, Digital)32 hours (5/5/90 duty cycle)

Battery Life (3200mAh, Analog)24 hours (5/5/90 duty cycle)

Dimensions (2200mAh)4.9 x 2.4 x 1.4 in (124 x 61 x 35 mm)

Dimensions (2400mAh)4.9 x 2.4 x 1.5 in (124 x 61 x 38 mm)

Dimensions (3200mAh)4.9 x 2.4 x 1.7 in (124 x 61 x 43 mm)

Weight (2200mAh)10.6 oz (300g) without antenna

Weight (2400mAh)11.3 oz (320g) without antenna

Weight (3200mAh)12.3 oz (350g) without antenna

Display1.5 inch, 132 x 48 pixels, monochrome

Programmable ButtonsP1, P2 + navigation keys

Protection RatingIP67 (submersible 1m for 30 min)

Military StandardMIL-STD-810H

Hazloc CertificationTIA4950 Hazloc

Operating Temperature-30°C to +60°C (-22°F to +140°F)

Storage Temperature-40°C to +85°C (-40°F to +185°F)

Frequency Stability±0.5 ppm

Antenna Impedance50Ω

RF Power Output (VHF High)5W

RF Power Output (VHF Low)1W

RF Power Output (UHF High)4W

RF Power Output (UHF Low)1W

Modulation (Analog 12.5kHz)11K0F3E

Modulation (Analog 25kHz)16K0F3E

Modulation (Digital 12.5kHz Data)7K60F1D / 7K60FXD

Modulation (Digital 12.5kHz Voice)7K60F1E / 7K60FXE

Digital ProtocolETSI TS 102 361-1/-2/-3 DMR Tier II

Digital VocoderAMBE+2

Conducted Spurious Emission<-36 dBm (<1GHz) / <-30 dBm (>1GHz)

Adjacent Channel Power (Tx)>60 dB @ 12.5 kHz / >70 dB @ 25 kHz

FM Hum and Noise (Tx)-40 dB @ 12.5 kHz / -45 dB @ 25 kHz

Audio Response (Tx)+1 to -3 dB

Audio Distortion (Tx)3% typical

Receiver Sensitivity (Analog)0.18 μV typical (12 dB SINAD)

Receiver Sensitivity (Digital)0.16 μV typical (5% BER)

Adjacent Channel Selectivity (Rx)>60 dB @ 12.5 kHz / >70 dB @ 25 kHz

Intermodulation (Rx)>70 dB

Spurious Rejection (Rx)>70 dB

Audio Output Power (Rated)1W

Audio Output Power (Max)3W

Maximum Speech Loudness106 phons (ISO 532B)

Wi-Fi2.4 GHz / 5.0 GHz with WPA3 security

Bluetooth5.2 (audio and data)

GNSSGPS, GLONASS, Galileo, BeiDou integrated

USB PortUSB-C for charging and programming

Audio ConnectorDual-pin accessory connector
