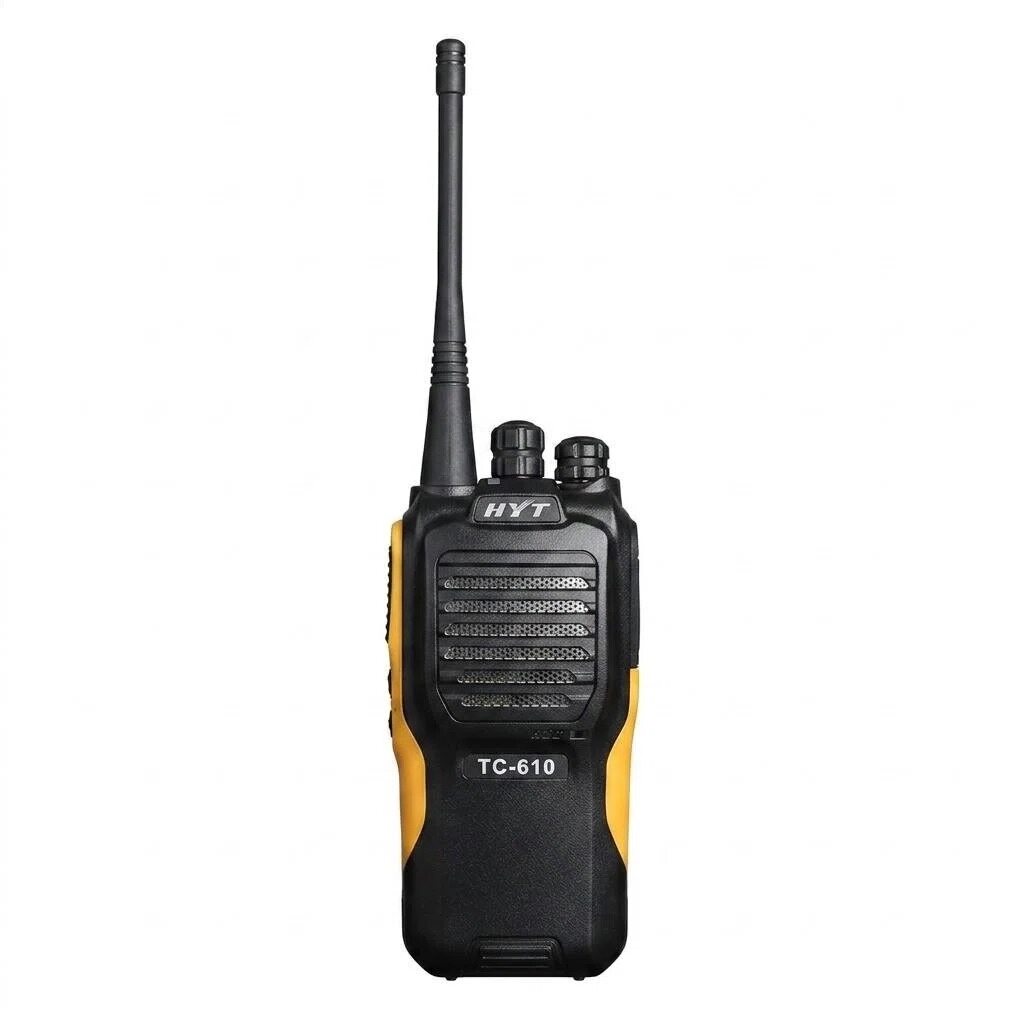

Hytera TC-610
Walkie Talkies

Hytera TC-610

Analog Hand-held Radio

Contact for Price
Minimum Order Quantity:10 units

The Hytera TC-610 is a professional analog hand-held radio designed for harsh, noisy and dusty working conditions in construction sites and industrial environments. With IP66-rated dust and water protection, this radio seals out dust and water effectively, allowing you to wash off mud and dust without damage. The powerful 45mm speaker delivers clear and crisp audio even in noisy environments, while the reliable mechanical design with secure battery latch ensures long-term durability. Featuring high/low power switchable output, programmable channel spacing, and automatic battery save features, the TC-610 provides efficient and reliable communication for security, construction, manufacturing, and facility management applications.

IP66 Rated
MIL-STD-810 C/D/E/F
CE Certified
FCC Compliant
RoHS Compliant
SGS Certificate DE11/81829313

Key Features

IP66 Protection

IP66-rated dust and water protection allows operation in harsh environments. Water jets from any direction for up to one minute cause no harmful effects. Radio can be washed and dried to continue normal operation.

Powerful Audio

Large 45mm speaker delivers loud, clear audio output for noisy work environments. Superior voice clarity ensures effective team communication even with background noise from machinery and equipment.

Reliable Design

HYT battery latch mechanism ensures secure connection between battery and radio throughout extended use. Rugged construction withstands daily wear and tear in demanding industrial applications.

Flexible Power

High/low power switchable (5W/1W) allows users to optimize for range or battery life. Single button press switches between modes. Battery save feature automatically activates during idle periods for extended operation time.

Technical Specifications

Frequency RangeVHF: 136-174 MHz / UHF: 440-470 MHz
Channel Capacity16 channels
Channel Spacing12.5 / 20 / 25 kHz
Operating Voltage7.4V DC
Battery Type2000mAh Li-ion (standard)
Battery Life (5-5-90 duty cycle)Approx. 14 hours (2000mAh Li-ion) / Approx. 9 hours (1300mAh NiMH optional)
Frequency Stability±2.5 ppm
Antenna Impedance50Ω
Dimensions (H × W × D)119 × 55 × 33 mm (with standard battery, without antenna)
Weight270g (with antenna and standard battery)
Operating Temperature-20°C to +55°C
Storage Temperature-40°C to +85°C
Shock and VibrationMIL-STD-810 C/D/E/F compliant
Protection RatingIP66 (dust tight, water jet resistant)
Transmitting PowerVHF: 2/5W (adjustable) / UHF: 2/5W (adjustable)
Modulation16KΦF3E / 8KΦF3E
Interfering Signals and Harmonics-36dBm (<1GHz) / -30dBm (>1GHz)
Signal-to-Noise Ratio40/35 dB
Nominal Audio Distortion (Transmitter)≤5%
Receiver Sensitivity0.25/0.28 μV
Adjacent Channel Selectivity≥60/70 dB
Intermodulation≥65 dB
Spurious Response Rejection≥70 dB
Hum and Noise40/45 dB
Nominal Audio Power Output800mW
Nominal Audio Distortion (Receiver)≤5%
Programmable Channel Spacing12.5/20/25 kHz configurable
Battery Save FeatureAutomatic activation during no activity
