Motorola SLR 5500
Repeaters

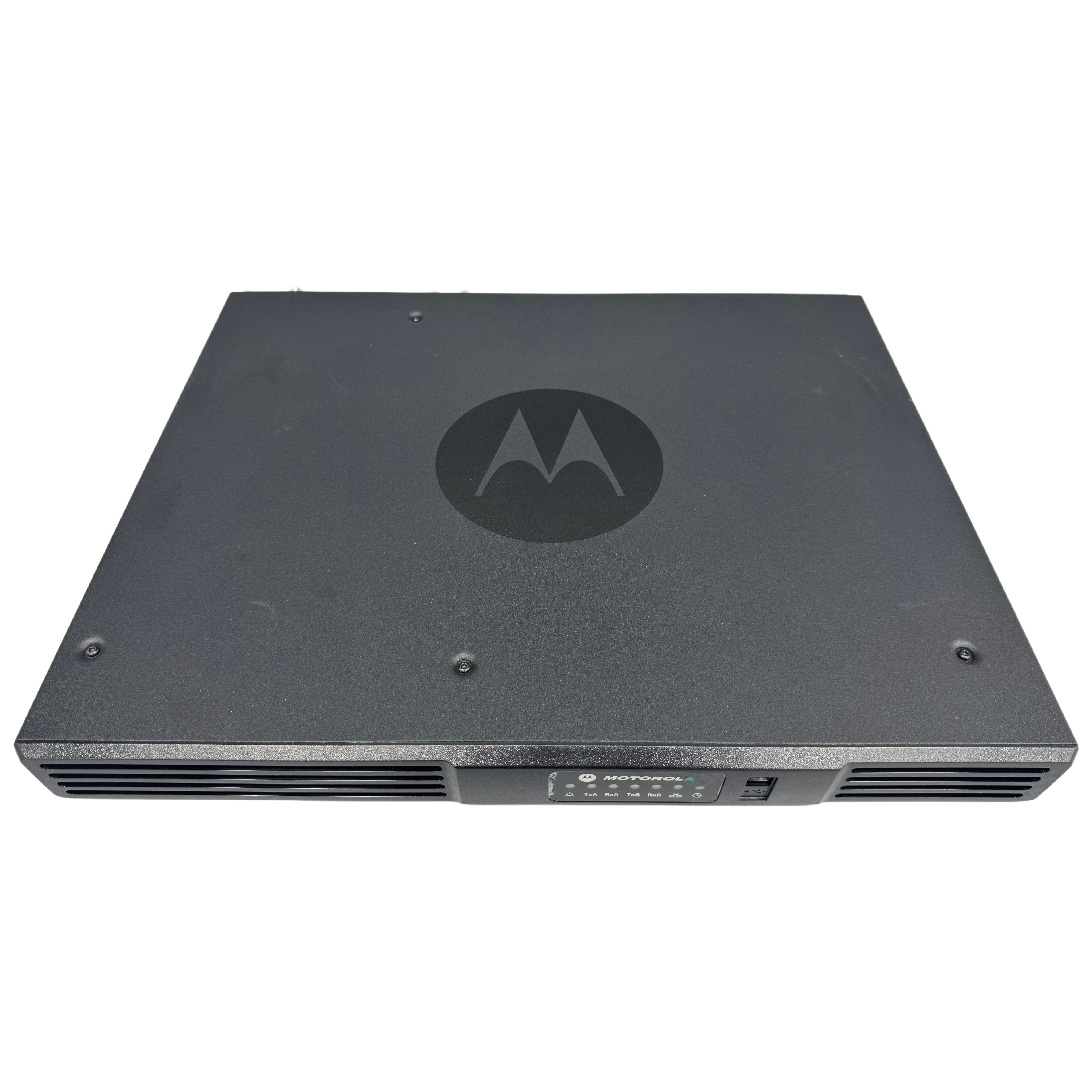

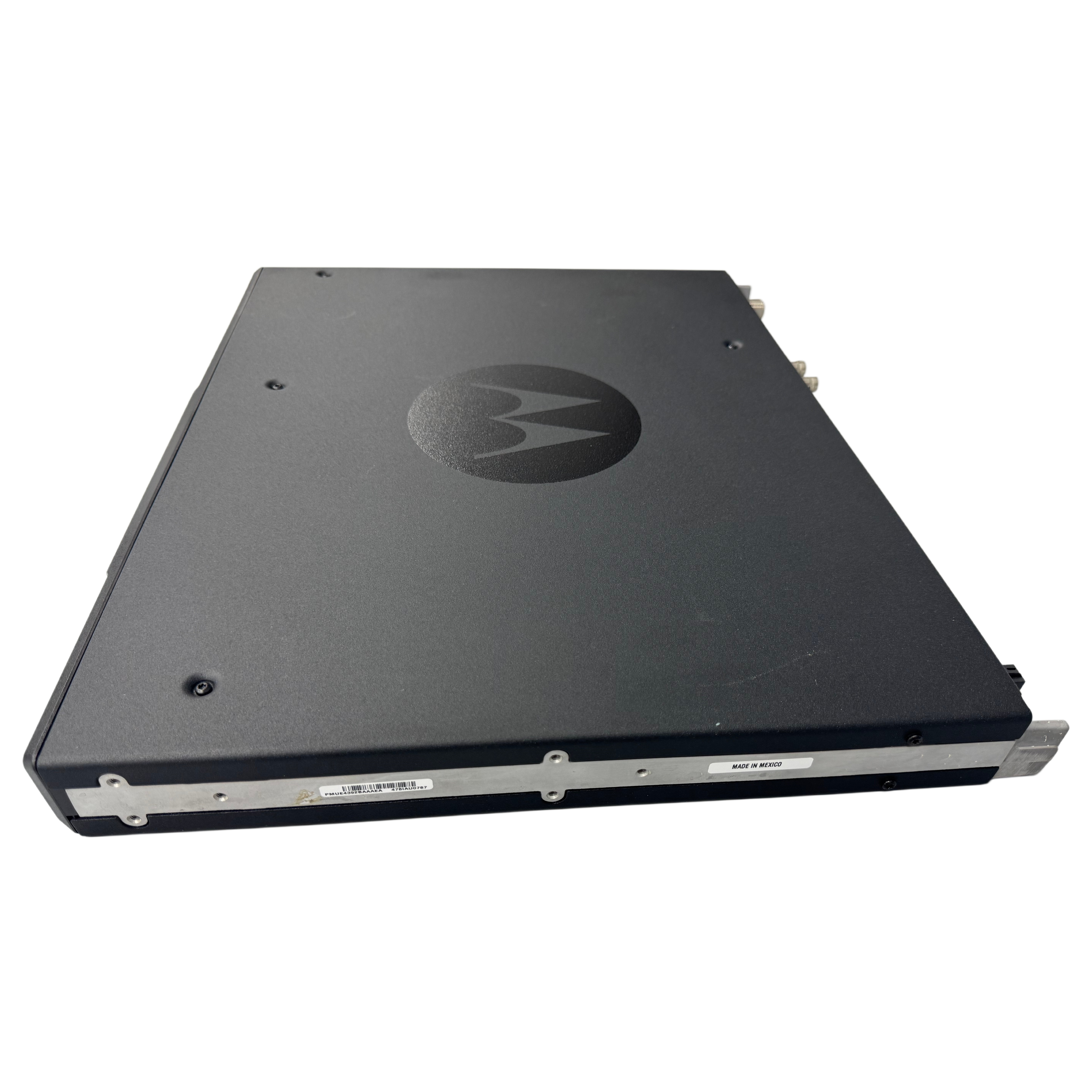

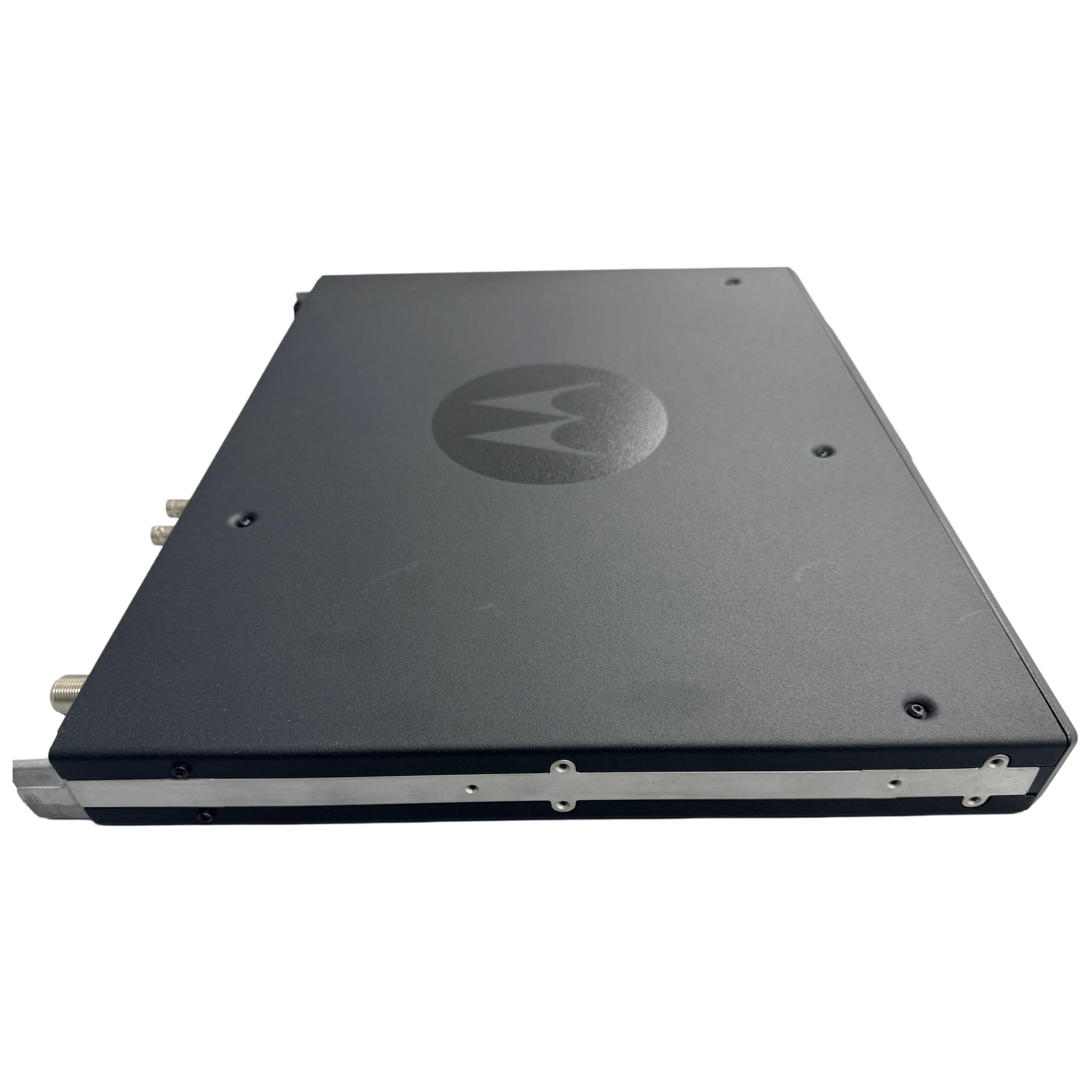

Motorola SLR 5500

MOTOTRBO Digital Repeater

Contact for Price
Minimum Order Quantity:5 units

The MOTOTRBO SLR 5500 repeater delivers high performance, high reliability two-way radio service with all the features you need to connect your workplace. This next-generation repeater integrates voice and data seamlessly, offers advanced features that are easy to use, and delivers increased capacity to meet your communication needs. With its sleek form factor, low power consumption, and 50W continuous transmit power, it's engineered for low cost of ownership while supporting the full MOTOTRBO feature set including Capacity Plus, Capacity Max, and Connect Plus trunking systems.

FCC Part 90
IC RSS-119
ETSI DMR Compliant
100% Duty Cycle Rated

Key Features

High Performance

Next-generation receiver design with high sensitivity and improved noise blocking. 50W transmit output power with digital error correction delivers clear voice quality even in adverse conditions.

High Efficiency

Latest RF technology provides exceptionally good power efficiency. Space-efficient 1U height and low thermal footprint give you very low cost of ownership.

Versatile Operation

Supports single site conventional, IP Site Connect, Capacity Plus, Capacity Max, and Connect Plus. Can also operate as analog repeater or mixed mode analog/digital.

Future-Ready Design

10x more processing power, 15x more memory, and 125x more data storage than first generation. Architecture has provision for expansion modules for future functionality.

Technical Specifications

Frequency Range136-174 MHz (VHF) / 400-470 MHz (UHF) / 300-360 MHz
Channel Capacity64 channels
RF Output Power1-50W (adjustable)
Dimensions (H x W x D)44 x 483 x 370 mm (1.75 x 19 x 14.6 in)
Weight8.6 kg (19 lbs)
Input Voltage (AC)100-240 Vac, 47-63 Hz
Current (Standby)0.18/0.25 A (110/240V)
Current (Transmitting)1.5/0.9 A (110/240V)
Input Voltage (DC)11.0-14.4 Vdc
Operating Temperature-30°C to +60°C (-22°F to +140°F)
Humidity95% RH, non-condensing at 50°C
Max Duty Cycle100%
Channel Spacing12.5/20/25 kHz
Frequency Stability±0.5 ppm (-30°C to +60°C)
Receiver Sensitivity (12dB SINAD)0.22 μV
Receiver Sensitivity (5% BER)0.22 μV
Selectivity (TIA603D)55/83/83 dB (12.5/20/25 kHz)
Adjacent Channel Power62/78/78 dB (12.5/20/25 kHz)
Audio Distortion< 1%
Digital Vocoder TypeAMBE+2™
Battery Charger Capacity12V, 3A

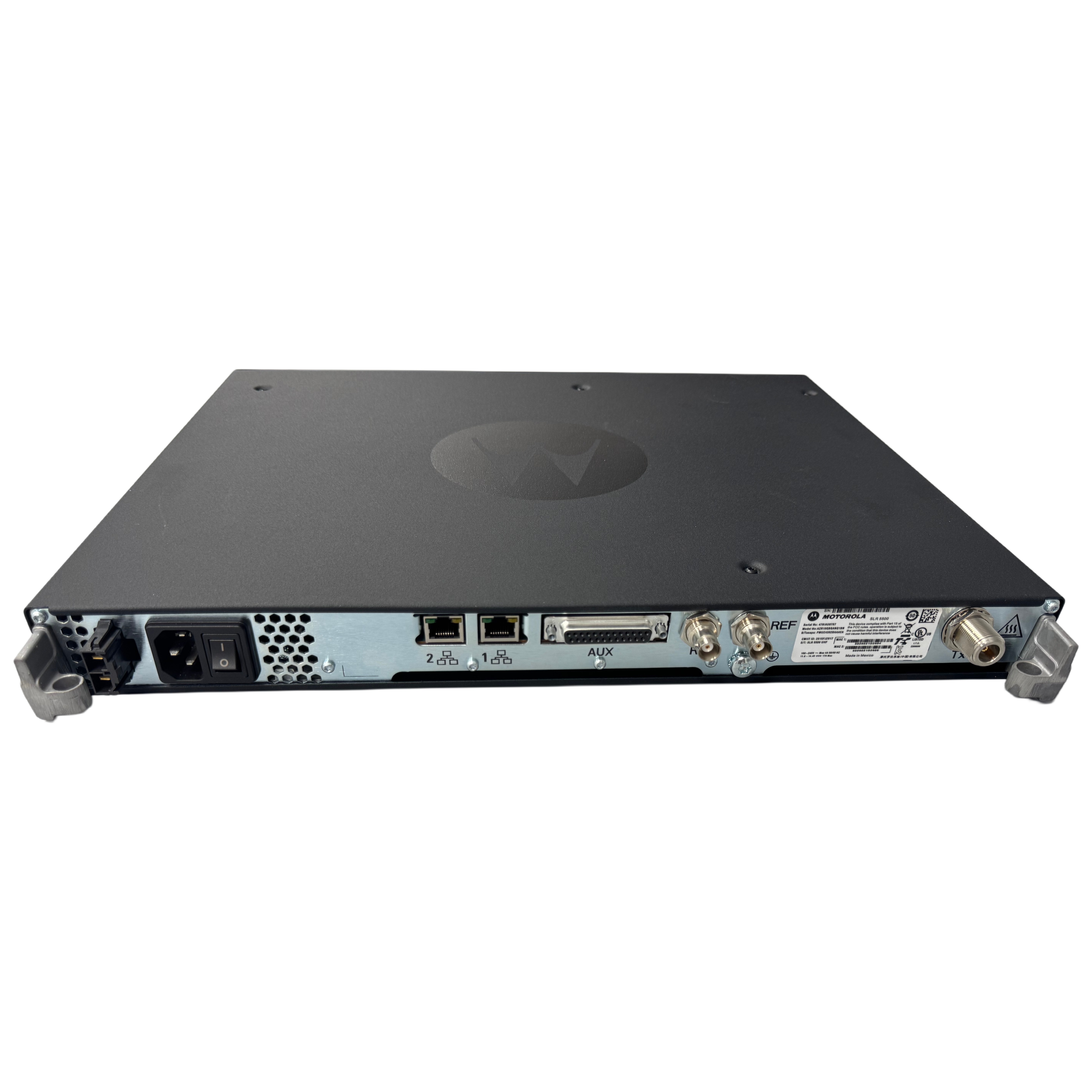

ConnectivityTx (N female), Rx (BNC female), USB-A, 2x Ethernet
Supported System TypesDigital Conventional, IP Site Connect, Capacity Plus, Capacity Max, Connect Plus, Analog Conventional, MPT 1327
