Hytera BP515
Walkie Talkies

Hytera BP515

Enhanced Business Two-Way Radio

Contact for Price
Minimum Order Quantity:10 units

The Hytera BP515 is an enhanced business two-way radio from the BP51X/BP56X series, designed for professional communication in demanding environments. As the no-display variant of the BP56X, it offers streamlined operation with 64-channel capacity and Type-C charging interface. With IP54 protection rating and MIL-STD-810G compliance, the BP515 ensures robust performance in harsh conditions. The intelligent noise cancellation algorithm and 1W high-power speaker provide crystal-clear audio even in noisy industrial environments.

IP54 Rated
MIL-STD-810G
ETSI DMR Tier II Compliant
CE Certified
Type-C Charging
Bluetooth 5.0 (Optional)

Key Features

Streamlined Operation

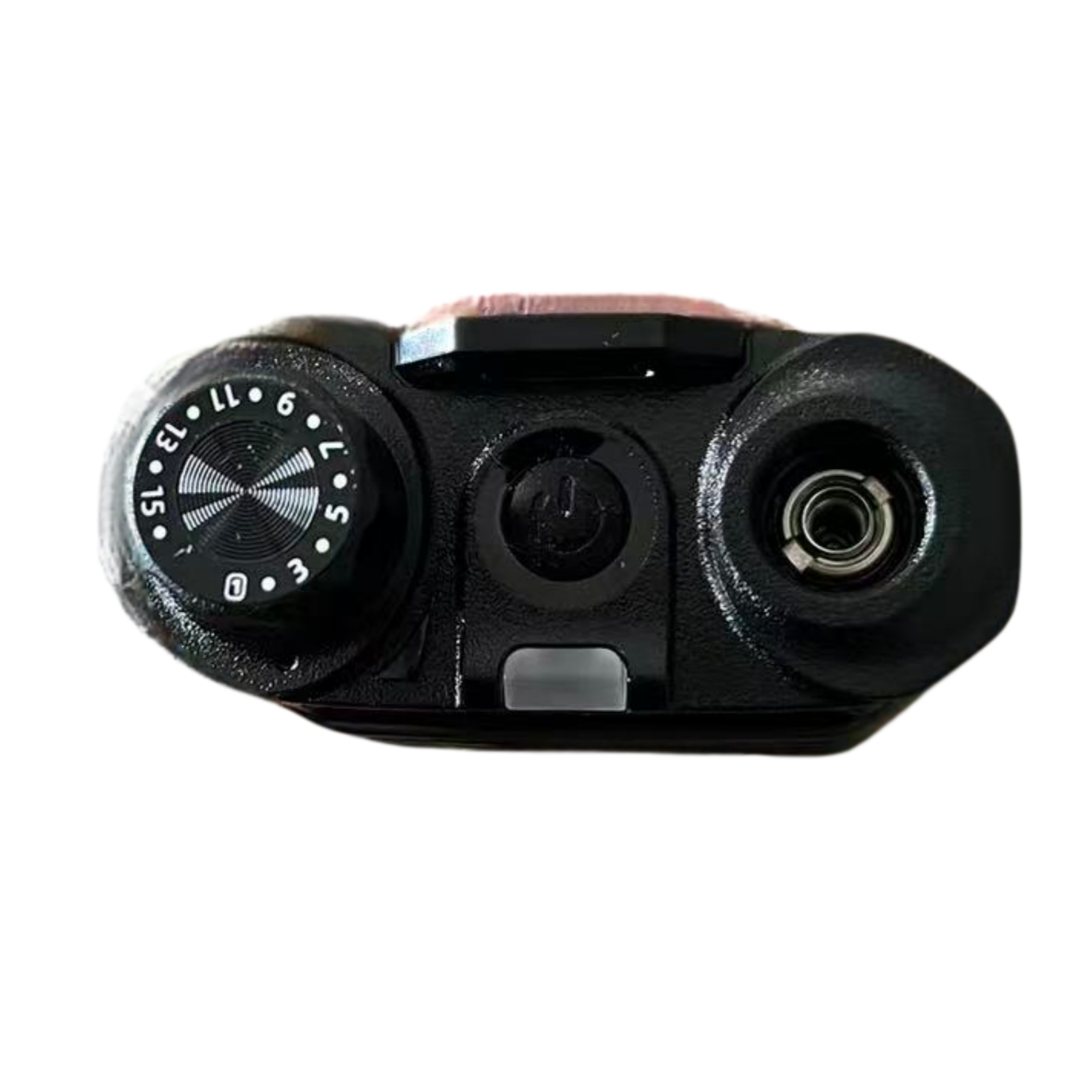

No-display design simplifies operation with dedicated channel selector knob and PTT button. Intuitive menu navigation through programmable buttons for efficient one-handed operation without visual distraction.

Extended Battery Life

1500mAh standard Li-ion battery delivers up to 16 hours (digital) / 12 hours (analog) of operation. Optional 2000mAh battery extends usage to 21 hours (digital) / 16 hours (analog) for full-shift reliability.

Rugged & Reliable

IP54 dust and water-proof construction protects against harsh environments. MIL-STD-810G tested for shock, vibration, and extreme temperature resistance from -30°C to +60°C.

Superior Audio Quality

1W high-power speaker delivers 90dBA maximum volume. Intelligent three-level noise cancellation algorithm filters out background noise for clear voice transmission in loud environments.

Technical Specifications

Product SeriesBP51X / BP56X Enhanced Business Two-Way Radio
ModelBP515 (BP51X no display variant)
Frequency RangeUHF: 400-470 MHz / VHF: 136-174 MHz
Channel Capacity64 channels (BP51X)
Zone Capacity4 zones (BP51X), 16 channels per zone
Channel Spacing12.5 kHz / 20 kHz / 25 kHz
Operating Voltage7.4V (nominal)
Battery Type1500mAh Li-ion (standard) / 2000mAh Li-ion (optional)
Battery Life (Analog, 5-5-90)12h (1500mAh) / 16h (2000mAh)
Battery Life (Digital, 5-5-90)16h (1500mAh) / 21h (2000mAh)
DisplayNone (BP51X no-display variant)
KeypadChannel selector knob + P1/P2 programmable buttons
Protection RatingIP54 (dust and water-proof)
Military StandardMIL-STD-810 G
BluetoothBT 5.0 BLE+EDR (optional)
RF Power OutputVHF: 5W/1W (adjustable) / UHF: 4W/1W (adjustable)
Audio Output Power1W (rated), 90dBA max volume
Modulation4FSK Digital (12.5kHz), DMR Tier II compliant
Digital ProtocolETSI TS 102 361-1/2/3 DMR Tier II
Receiver Sensitivity (Analog)≤0.25 μV (12dB SINAD)
Receiver Sensitivity (Digital)≤0.25 μV (BER 5%)
Adjacent Channel Selectivity≥60dB @ 12.5kHz / ≥70dB @ 20/25kHz
Dimensions (H x W x D)115 x 55 x 29.5 mm
Weight210g (BP51X with antenna and 1500mAh battery)
Operating Temperature-30°C* to +60°C (*Host unit only, battery: -20°C)
Storage Temperature-40°C to +85°C
Frequency Stability±0.5 ppm
Antenna Impedance50Ω

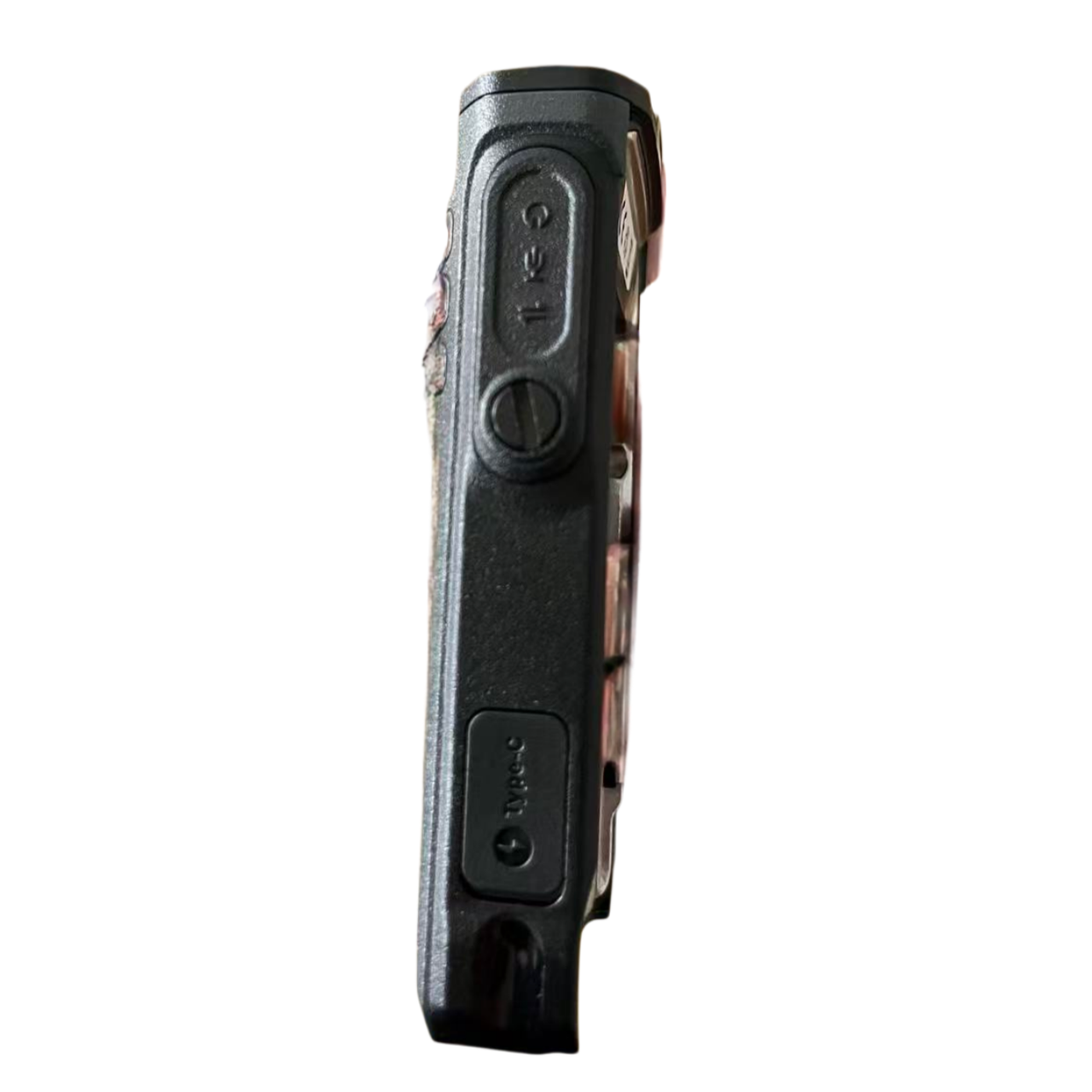

Charging InterfaceType-C USB charging port

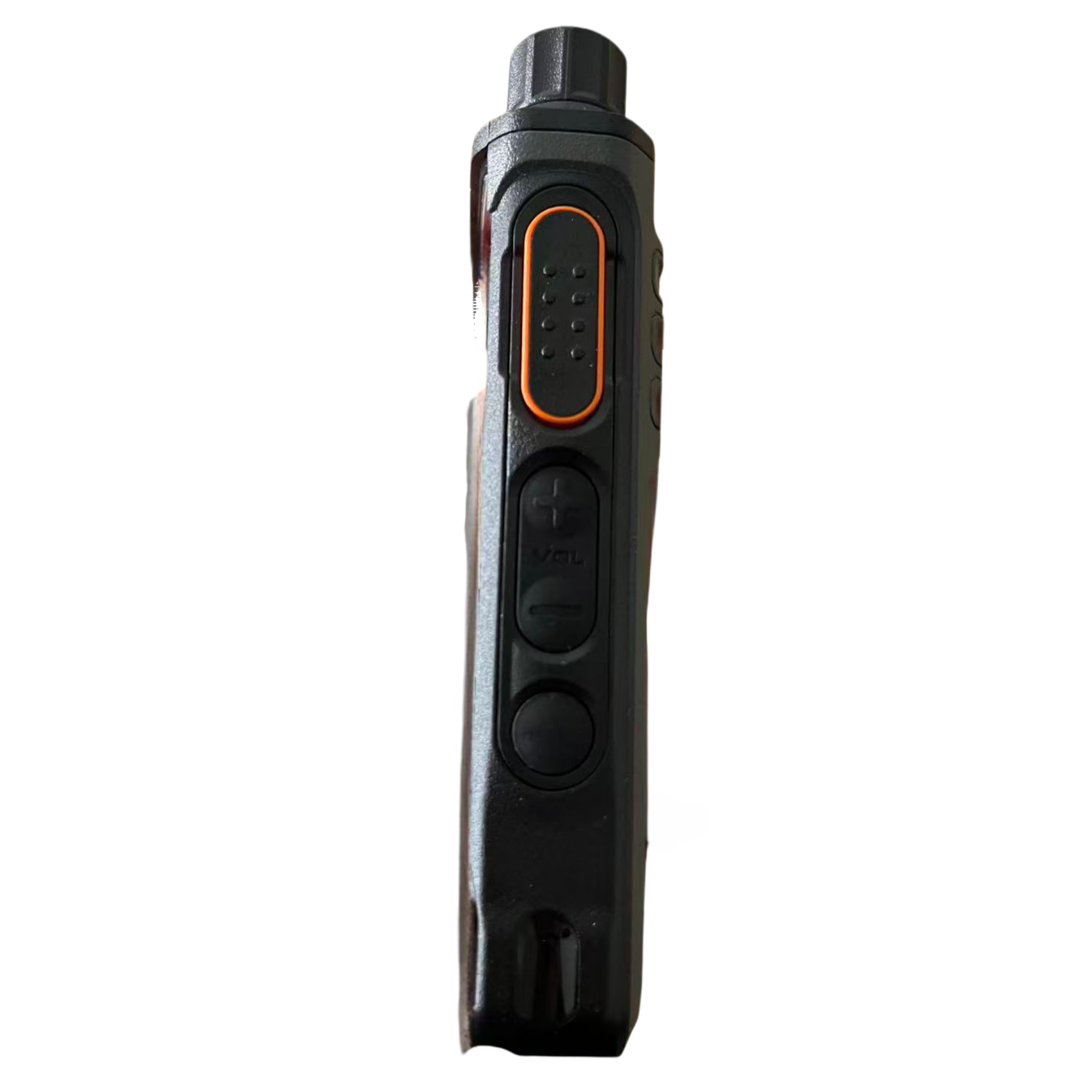

Programmable ButtonsP1, P2 + channel selector knob
Noise CancellationIntelligent three-level adjustable noise reduction
Emergency FeaturesEmergency alarm, emergency call, lone worker
