Walkie Talkies

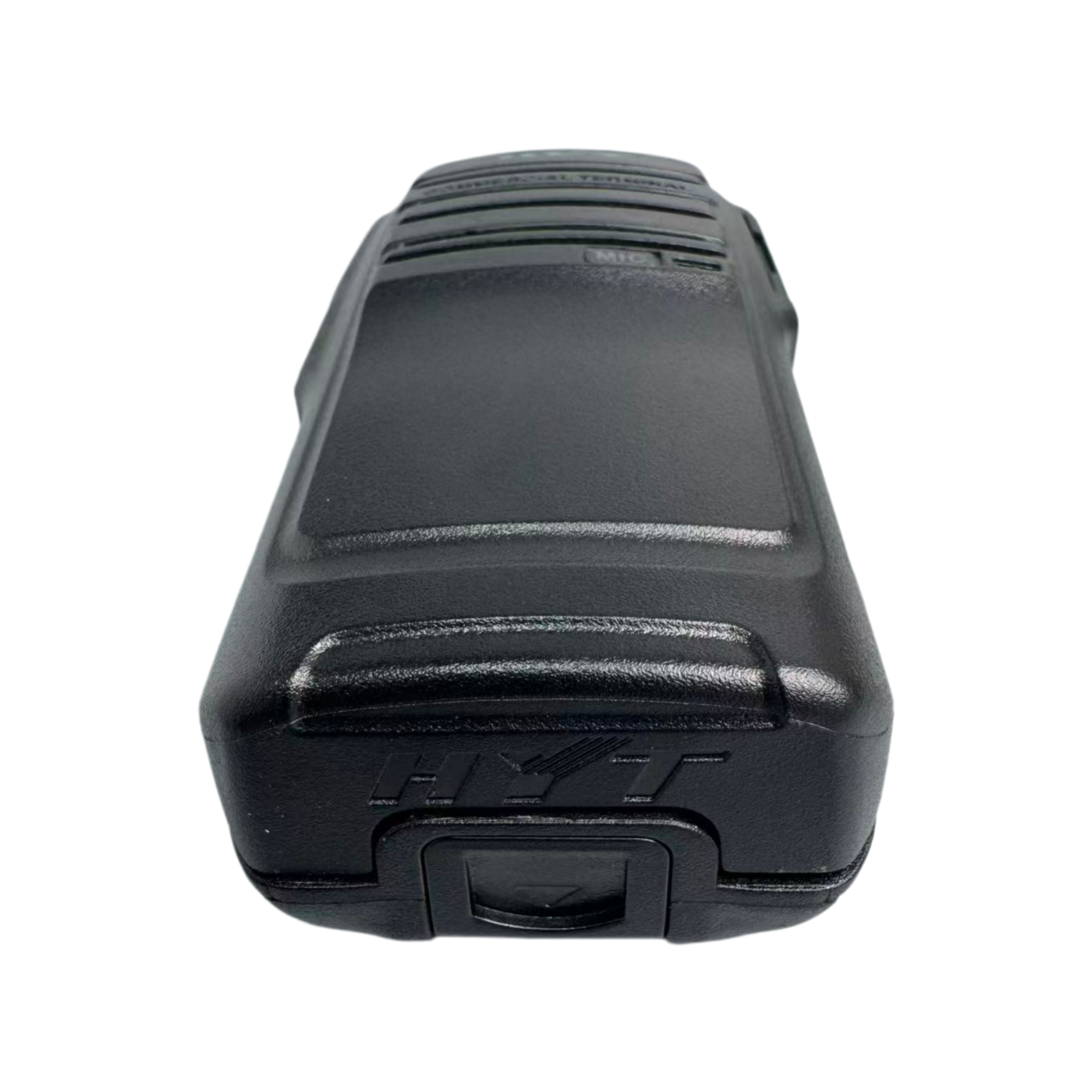

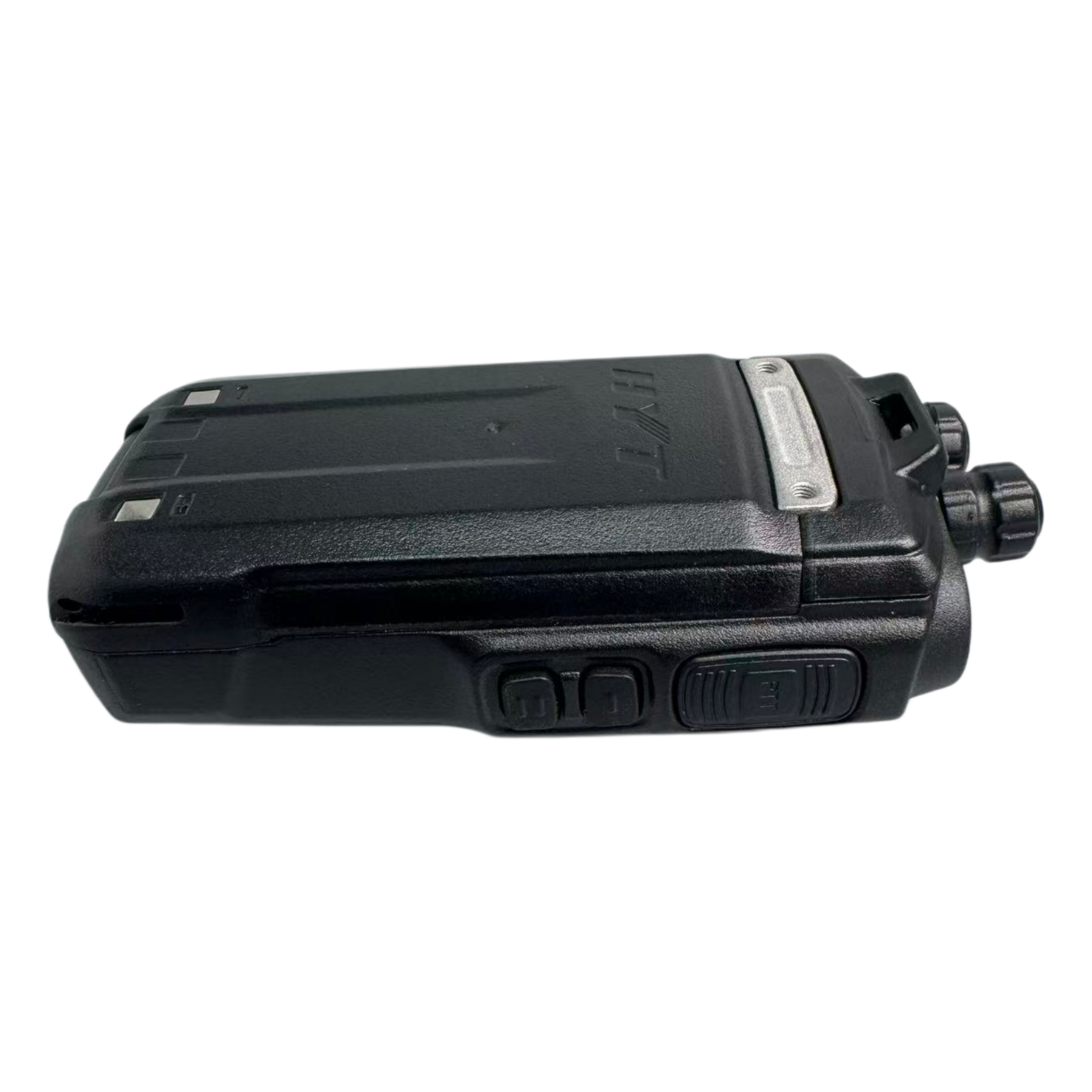

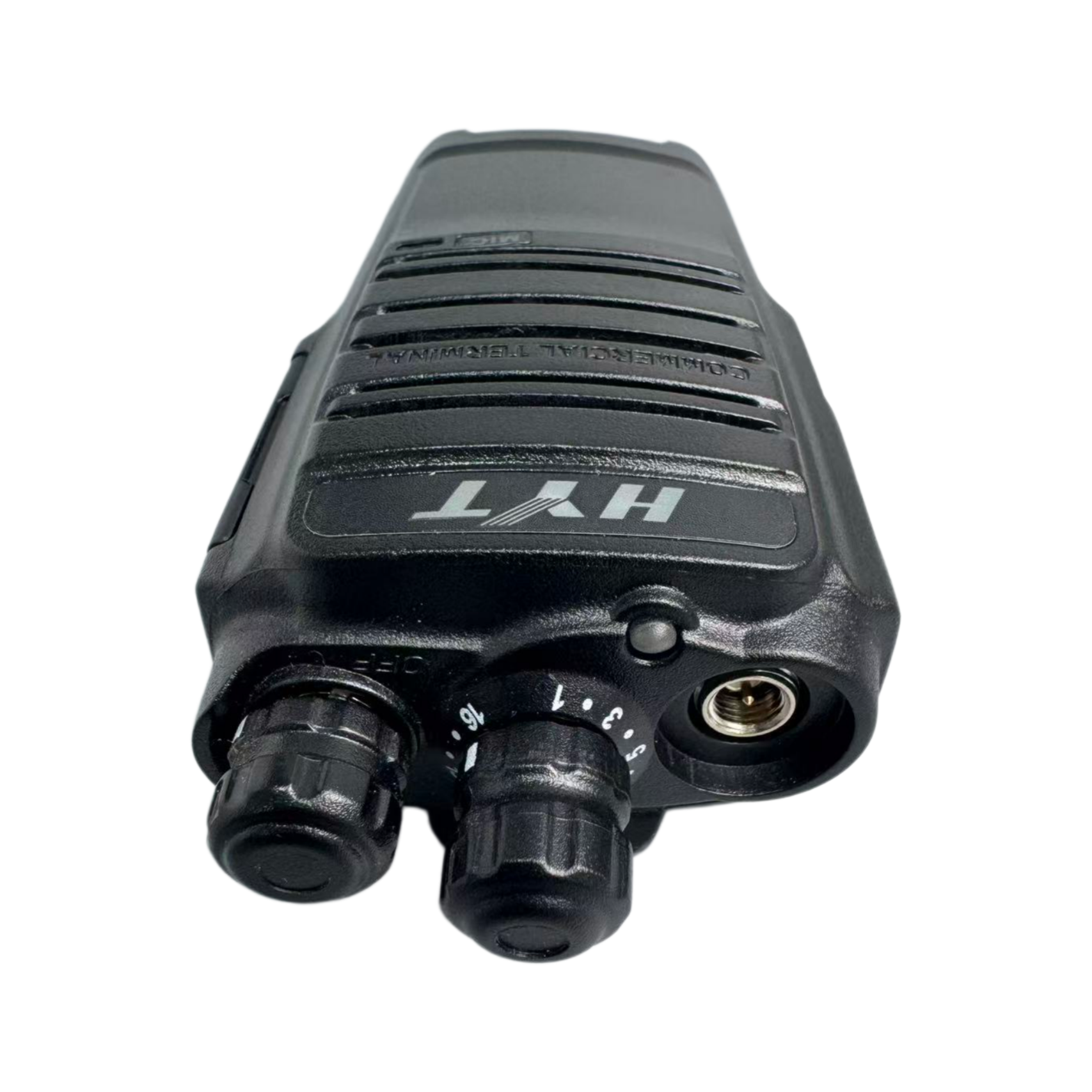

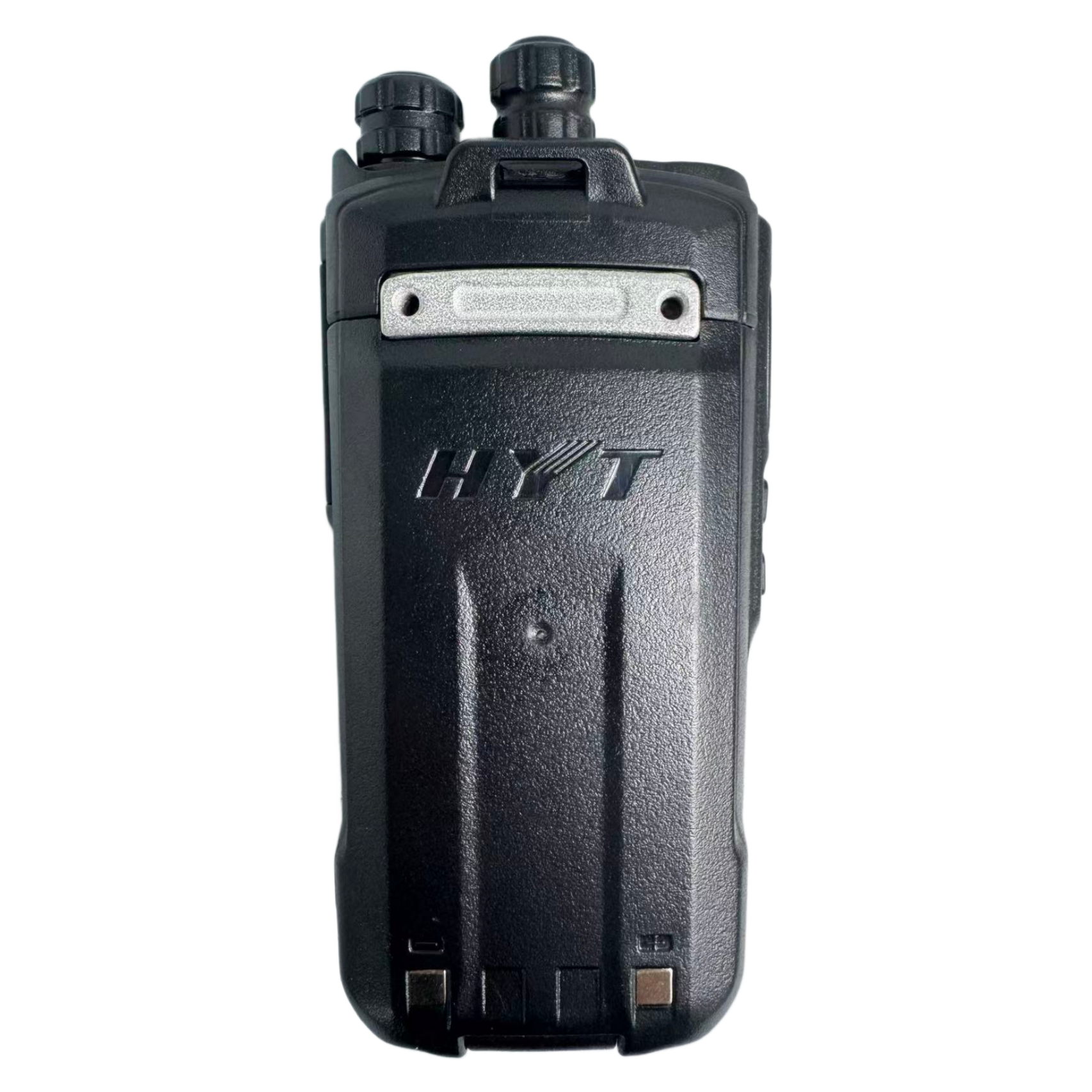

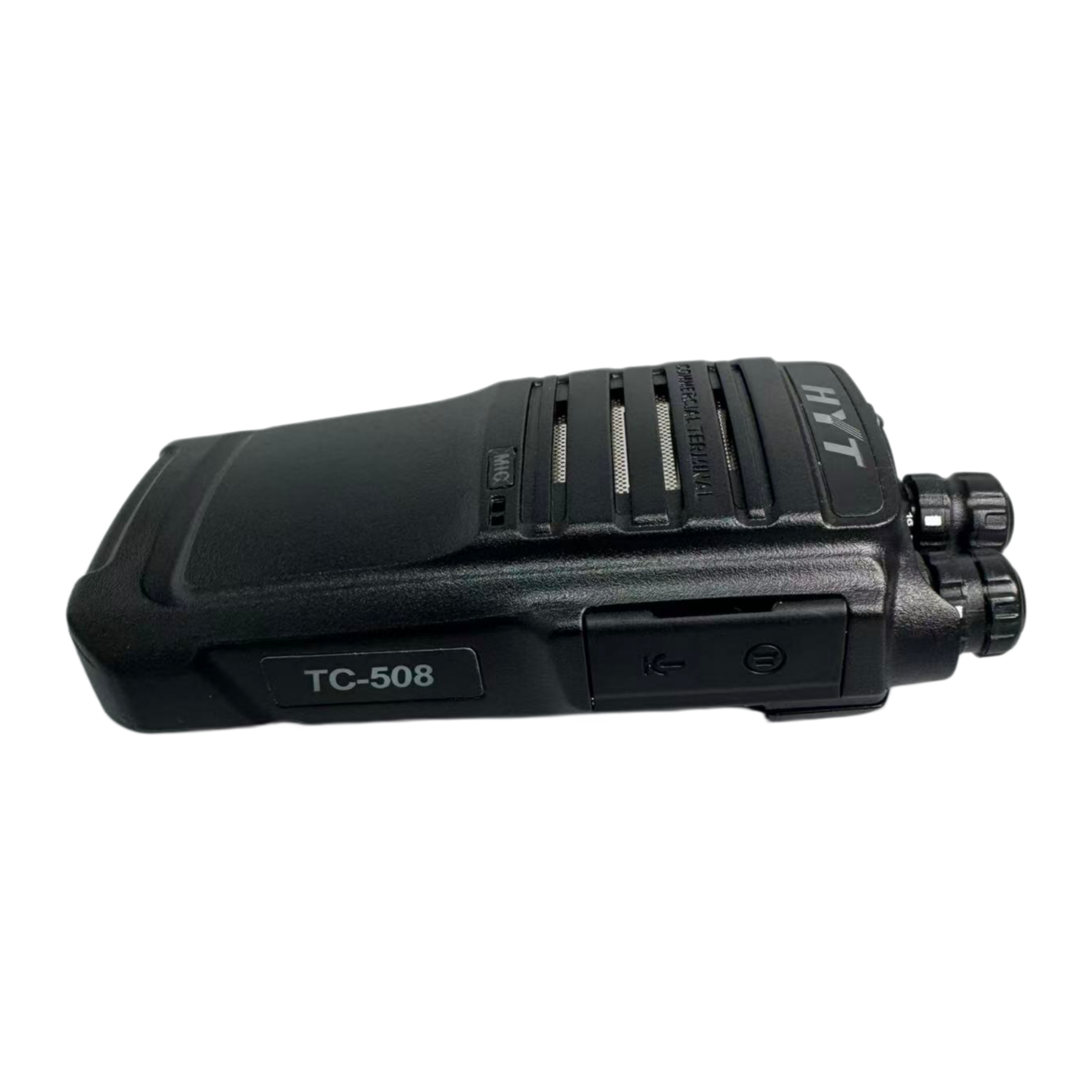

Hytera TC-508

Professional Analog Two-Way Radio

Contact for Price

Minimum Order Quantity:10 units

The Hytera TC-508 is a professional analog two-way radio designed for business and industry. As an affordable and reliable communication solution, the TC-508 enhances productivity and management efficiency across facilities, hospitality, manufacturing, retail, education, and construction sectors. With its light-weight yet exceptionally strong body, this compact radio can easily survive harsh conditions while providing up to 14 hours of battery life. The TC-508 employs advanced voice technologies to deliver superior sound quality during your communication.

IP54 Rated

HYT 5-Year ALT Test

16 Channel Capacity

High/Low Power Switch

Wide/Narrow Band Switch

CTCSS/CDCSS

Channel Scan

Battery Save

Low Battery Alert

Busy Channel Lockout

Time-out Timer (TOT)

PC Programmable

Wired Clone

Download Datasheet (PDF)

Key Features

Tough & Light-weight

Light-weight but exceptionally strong body allows easy portability and survives harsh conditions. Compact design ensures comfortable all-day carry.

Robust & Reliable

Built to survive hard knocks, drops, and tough environments. Meets or exceeds HYT 5-year ALT test standards for long-term reliability.

Longer Battery Life

Equipped with 1650mAh battery enabling up to 14 hours of operation on 5-5-90 duty cycle. Ensures long-lasting performance throughout your shift.

Enhanced Voice Quality

Advanced voice technologies better sound quality during communication. Clear audio transmission even in noisy environments.

Technical Specifications

Frequency RangeVHF: 146-174 MHz / UHF: 450-470 MHz

Channel Capacity16 channels

Channel Spacing25 kHz / 12.5 kHz

Operating Voltage7.4V

Battery Type1650 mAh Li-ion

Battery Life (5-5-90 Duty Cycle)Approx. 14 hours

Frequency Stability±2.5 ppm

Operating Temperature-20°C to +65°C

Antenna Impedance50Ω

Dimensions (H × W × D)113 × 54 × 35 mm (with battery, without antenna)

Weight (with antenna & battery)Approx. 280g

Power Output (VHF)5W (High) / 2W (Low)

Power Output (UHF)4W (High) / 2W (Low)

Modulation16K0F3E / 11K0F3E

Spurious and Harmonics≤-26dBm (<1GHz)

FM Noise40 dB / 35 dB

Audio Distortion (Transmitter)≤5%

Modulation Limiting≤5 kHz (25 kHz) / ≤2.5 kHz (12.5 kHz)

Audio Response≤+1~-3 dB (6dB/oct pre-emphasized, 300-3000 Hz)

Receiver Sensitivity≤0.251 μV / 0.282 μV

Adjacent Channel Selectivity65 dB / 55 dB

Intermodulation60 dB

Spurious Response Rejection65 dB

Signal-to-Noise Ratio45 dB / 40 dB

Rated Audio Power Output0.5W (Speaker impedance: 16 Ω)

Rated Audio Distortion (Receiver)≤5% (0.5W)

Conducted Spurious Emission-57 dBm (<1GHz) / -47 dBm (>1GHz)
