Motorola DM2600
Mobile Radios

Motorola DM2600

MOTOTRBO Digital Mobile Radio

Contact for Price
Minimum Order Quantity:5 units

The MOTOTRBO DM2600 is a reliable digital mobile radio designed for professional vehicle-mounted communications. Delivering 25W of RF output power, it features DMR Tier II technology for efficient spectrum usage and superior audio quality. The intuitive LCD display provides clear channel information and status indicators, while multiple programmable buttons enable quick access to frequently used functions. With voice scrambler for privacy protection and emergency alert capabilities, the DM2600 is ideal for commercial fleets, public safety, and industrial applications requiring dependable mobile communication.

CE Certified
FCC Part 90
ETSI DMR Compliant
RoHS Compliant

Key Features

Clear Display

Integrated LCD display provides clear channel information, signal strength, and status indicators. Easy-to-read screen enables quick access to radio settings and operational status.

Reliable Output

25W RF output power ensures solid coverage area for vehicle-mounted operations. Consistent performance in diverse environments with adjustable power settings for different scenarios.

Digital Efficiency

DMR Tier II technology doubles spectrum capacity compared to analog systems. Superior audio quality with noise cancellation delivers clear communication in challenging environments.

Privacy & Safety

Built-in voice scrambler protects sensitive communications from unauthorized listeners. Emergency alert function enables quick distress signaling for enhanced operator safety.

Technical Specifications

Frequency Range136-174 MHz (VHF) / 403-470 MHz (UHF)
Channel Capacity160 channels
RF Output Power25W (fixed)
Power Supply13.2V DC (nominal), 10.8-15.6V DC (operating range)
Current Consumption (Standby)≤ 0.4A
Current Consumption (Full Load)≤ 7A @ 25W
Operating Temperature-30°C to +60°C (-22°F to +140°F)
Storage Temperature-40°C to +85°C (-40°F to +185°F)
Humidity5% to 95% RH, non-condensing
Dimensions (H x W x D)45 x 150 x 140 mm (without brackets)
Weight1.1 kg
Receiver Sensitivity (Analog)0.22 μV typical (12 dB SINAD)
Receiver Sensitivity (Digital)0.22 μV typical (BER 5%)
Adjacent Channel Selectivity≥70dB @ 12.5kHz / ≥80dB @ 20/25kHz
Intermodulation Suppression≥65dB typical
Spurious & Harmonics≤ -70dBc (≤ 1W), ≤ -60dBc (> 1W)
Audio ResponseTIA603D compliant, ±1.5dB
Audio Distortion≤3% typical
Modulation4FSK Digital, 12.5/20/25 kHz
Digital ProtocolETSI TS 102 361-1,-2,-3 DMR Tier II & III
DisplayMonochrome LCD with backlight
Programmable Buttons4 buttons (P1-P4)
Voice ScramblerBasic voice encryption for privacy protection
Emergency AlertManual emergency button activation

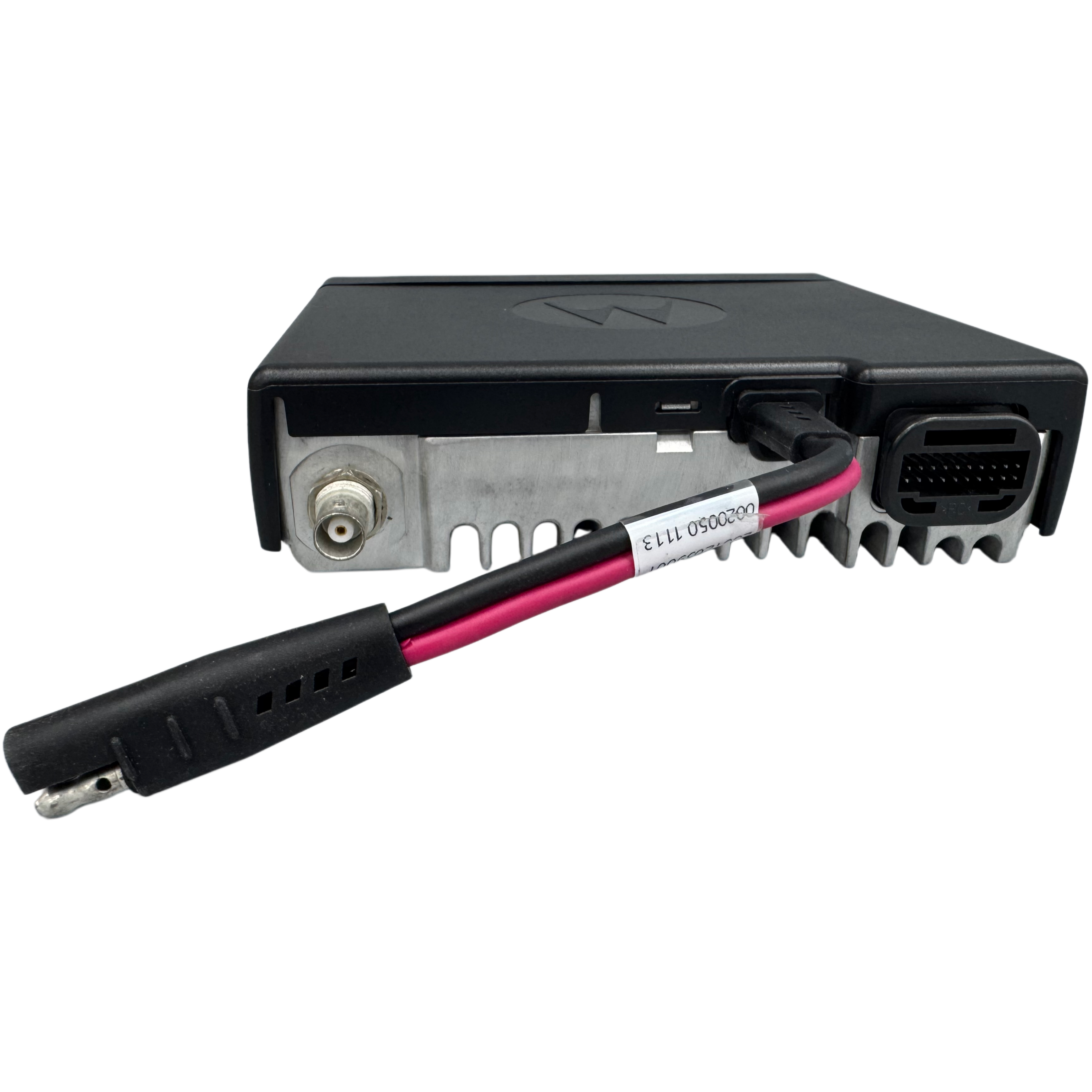

ConnectivityAntenna (SO-239), Power/Mic connector, Accessory port
