Mobile Radios

Motorola DM4401e

MOTOTRBO Digital Mobile Radio with GPS

Contact for Price

Minimum Order Quantity:5 units

The MOTOTRBO DM4401e is an advanced digital mobile radio with integrated GPS for vehicle-mounted communications. Delivering 40W of reliable RF output power, it features DMR Tier II technology for efficient spectrum usage and superior audio quality. The built-in GPS receiver enables real-time location tracking and dispatch capabilities, making it ideal for fleet management and mobile workforce coordination. With Bluetooth audio support and robust construction, the DM4401e provides reliable communication for public safety, transportation, and commercial fleet applications.

CE Certified

FCC Part 90

ETSI DMR Compliant

RoHS Compliant

IP54 Rated

Download Datasheet (PDF)

Key Features

Powerful Output

40W RF output power ensures wide coverage area for vehicle-mounted operations. Adjustable power settings optimize battery consumption and signal quality.

Digital Efficiency

DMR Tier II technology doubles spectrum capacity compared to analog. Superior audio quality with advanced noise cancellation for clear communication.

Connected Audio

Integrated Bluetooth enables wireless audio accessories and hands-free operation. Supports Bluetooth headsets and speaker microphones for flexible communication.

Integrated GPS

Built-in GPS receiver provides real-time location tracking and dispatch capabilities. Event-driven location updates support fleet management and emergency response coordination.

Technical Specifications

Frequency Range136-174 MHz (VHF) / 403-470 MHz (UHF)

Channel Capacity160 channels

RF Output Power25-40W (adjustable)

Power Supply13.2V DC (nominal), 10.8-15.6V DC (operating range)

Current Consumption (Standby)≤ 0.5A

Current Consumption (Full Load)≤ 10A @ 40W

Operating Temperature-30°C to +60°C (-22°F to +140°F)

Storage Temperature-40°C to +85°C (-40°F to +185°F)

Humidity5% to 95% RH, non-condensing

Dimensions (H x W x D)52 x 170 x 165 mm (without brackets)

Weight1.3 kg

Receiver Sensitivity (Analog)0.22 μV typical (12 dB SINAD)

Receiver Sensitivity (Digital)0.22 μV typical (BER 5%)

Adjacent Channel Selectivity≥70dB @ 12.5kHz / ≥80dB @ 20/25kHz

Intermodulation Suppression≥65dB typical

Spurious & Harmonics≤ -70dBc (≤ 1W), ≤ -60dBc (> 1W)

Audio ResponseTIA603D compliant, ±1.5dB

Audio Distortion≤3% typical

Modulation4FSK Digital, 12.5/20/25 kHz

Digital ProtocolETSI TS 102 361-1,-2,-3 DMR Tier II & III

DisplayMonochrome LCD with backlight

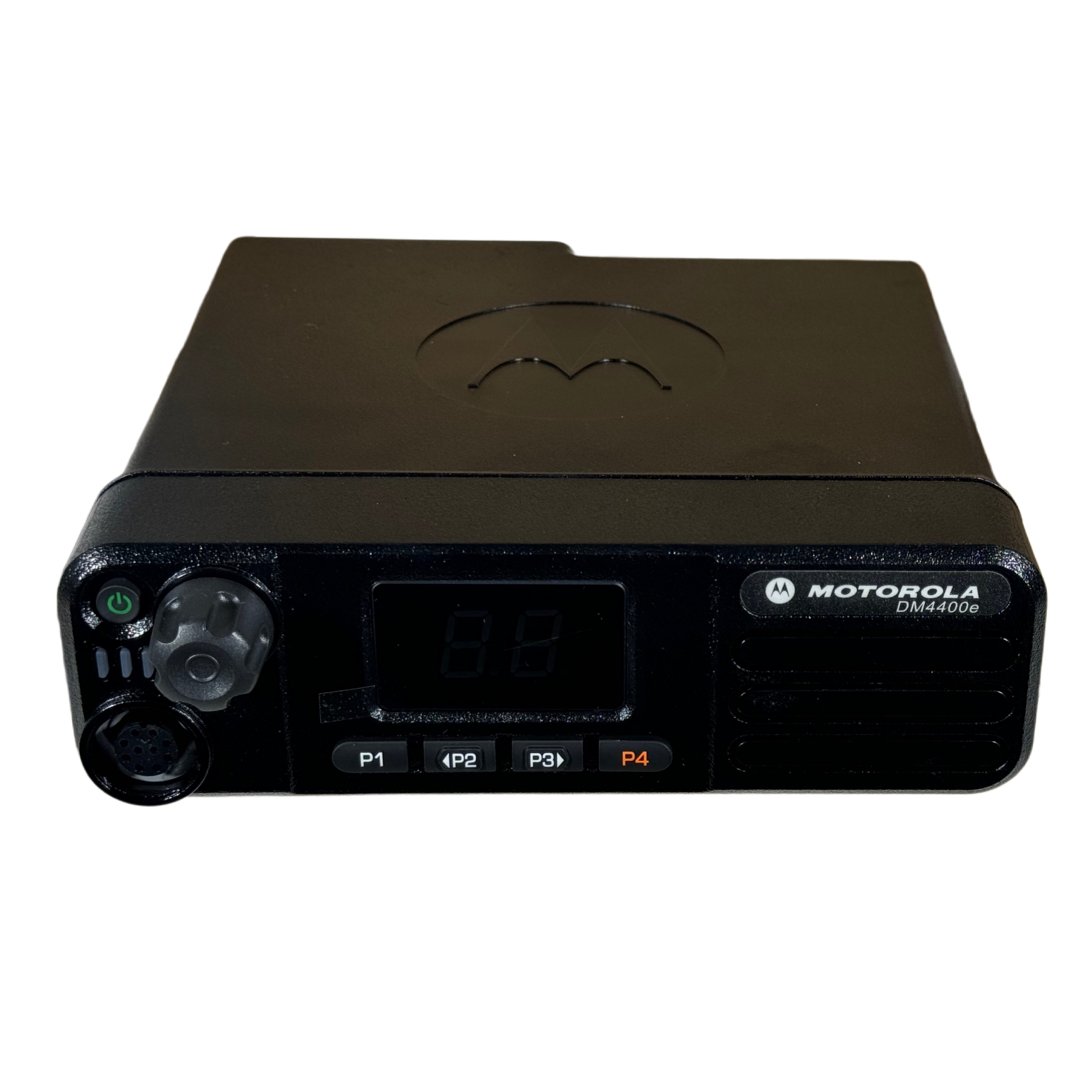

Programmable Buttons4 buttons (P1-P4)

BluetoothVersion 2.1 + EDR, Class 2

GPSIntegrated GPS receiver, NMEA 0183 output

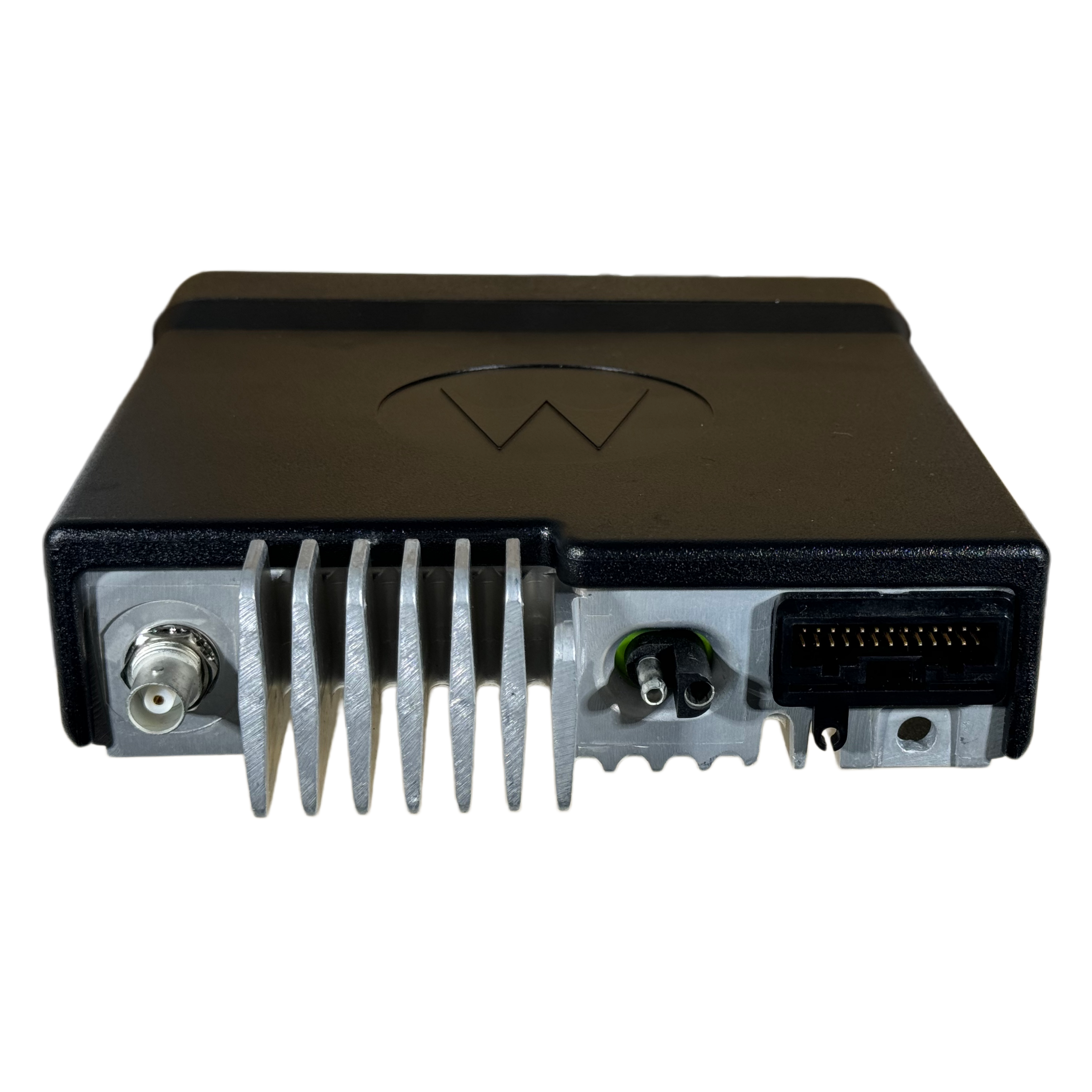

ConnectivityAntenna (SO-239), Power/Mic (8-pin DIN), Accessory (DB9)
