Hytera HR1065

Professional DMR Repeater

Contact for Price

Minimum Order Quantity:5 units

The Hytera HR106X/HR1065 is a professional DMR digital repeater designed according to ETSI DMR standards. Featuring a compact 1U rack-mountable design, it offers automatic analog/digital mode switching and built-in AC/DC power supply for flexible deployment. With enhanced receiver sensitivity and wide coverage range, the HR1065 delivers reliable voice and data communications for mission-critical operations. The enhanced variant supports web-based management, SIP gateway functionality, and router capabilities for advanced network integration.

ETSI DMR Compliant

MIL-STD-810

CE Certified

FCC Part 90

RoHS Compliant

Download Datasheet (PDF)

Key Features

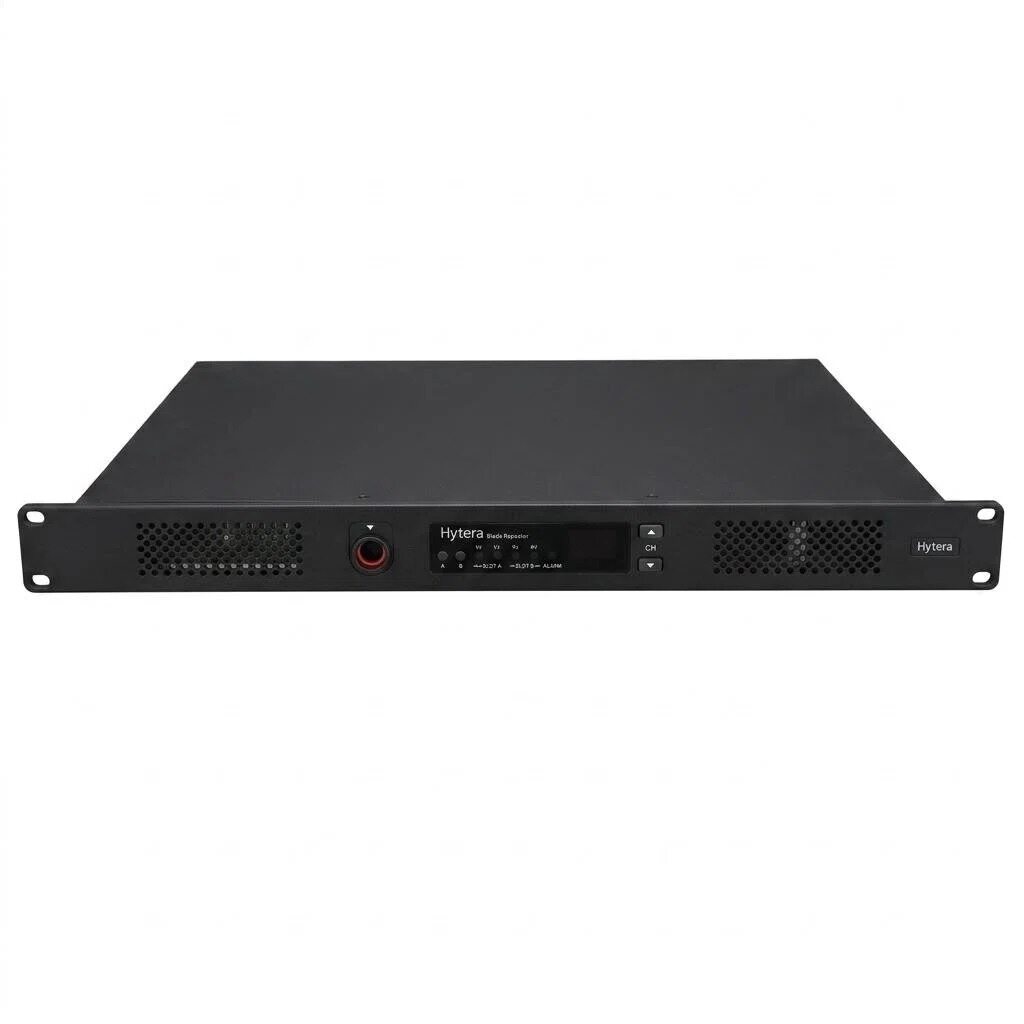

Compact 1U Design

Space-efficient 1U rack-mountable form factor (44mm height) fits standard 19-inch racks. Lightweight at 5.8kg for easy installation and maintenance.

Dual Mode Operation

Automatic switching between analog and digital modes depending on received signal type. Fully compatible with existing analog systems while enabling DMR digital advantages.

AC/DC Power Supply

Built-in power adapter supports both AC 100-240V and DC 13.6V input. Automatic switching ensures continuous operation with backup battery during power outages.

Enhanced Management

Web-based remote management for configuration and monitoring. Enhanced variant supports SIP gateway and router functions for seamless network integration.

Technical Specifications

Frequency RangeUHF: 400-470 MHz / VHF: 136-174 MHz

Channel Capacity64 channels

Channel Spacing12.5/20/25 kHz (analog), 12.5 kHz (digital)

Operating VoltageDC 13.6V ±15% / AC 100-240V, 50/60Hz

Power Consumption (Standby)≤ 1.5A @ 13.6V DC

Power Consumption (Transmission)≤ 12A @ 13.6V DC (50W output)

RF Output Power5-50W (adjustable)

Frequency Stability±0.5 ppm (-30°C to +60°C)

Receiver Sensitivity (Analog)0.22 μV typical (12 dB SINAD)

Receiver Sensitivity (Digital)0.22 μV typical (BER 5%)

Adjacent Channel Selectivity≥70dB @ 12.5kHz / ≥80dB @ 20/25kHz

Audio Output0.5W nominal, ≤3% distortion

Digital Vocoder TypeAMBE++

Digital ProtocolETSI TS 102 361-1/2/3 DMR Tier II & III

Supported Operating ModesConventional, XPT Pseudo-Trunking, Digital Trunking

Dimensions (H × W × D)44 × 483 × 366 mm (1U × 19 inch)

Weight5.8 kg

Operating Temperature-30°C to +60°C (-22°F to +140°F)

Storage Temperature-40°C to +85°C (-40°F to +185°F)

Humidity5% to 95% RH, non-condensing

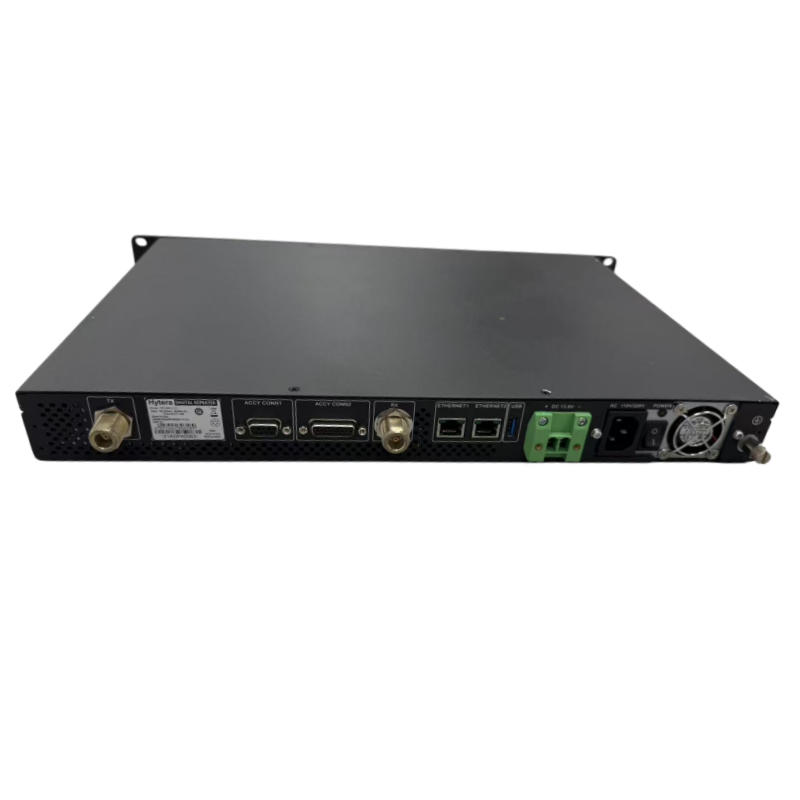

ConnectivityTx/Rx (N female), Ethernet (RJ45), USB, DB9 (Programming), DB25 (Accessory)

Network ManagementWeb browser, SNMP v2/v3

Enhanced FeaturesSIP Gateway, Router Function, Remote Management (Enhanced variant only)
