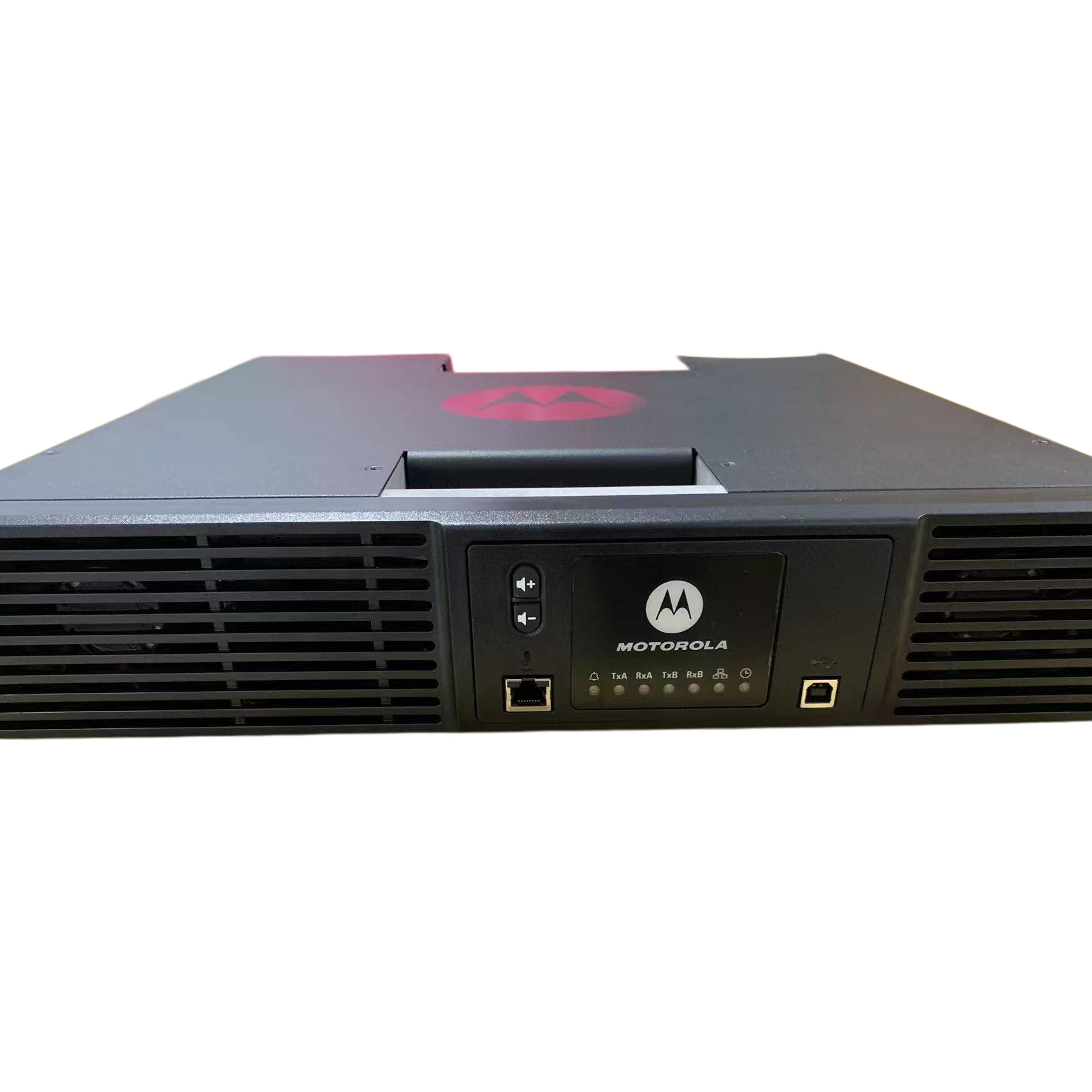

Motorola SLR 8000

MOTOTRBO Digital Repeater

Contact for Price

Minimum Order Quantity:5 units

The MOTOTRBO SLR 8000 is a high-performance digital repeater designed for mission-critical communications. Featuring advanced IP networking capabilities, it supports IP Site Connect for linking multiple sites over IP networks and Capacity Plus for trunking-like efficiency. The SLR 8000 offers remote management capabilities, superior RF performance, and reliable operation for demanding public safety and commercial applications. With its robust construction and flexible configuration options, it serves as the backbone of professional DMR communication systems.

FCC Part 15

FCC Part 90

UL Listed

ETSI DMR Compliant

CE Certified

RoHS Compliant

Download Datasheet (PDF)

Key Features

High Performance

Superior RF performance with advanced filtering and signal processing. Delivers clear, reliable communication even in challenging environments with interference.

IP Network Ready

Built-in IP connectivity enables remote management, monitoring, and configuration. Supports IP Site Connect for multi-site linking over standard IP networks.

Scalable Capacity

Capacity Plus trunking technology maximizes spectrum efficiency, supporting hundreds of users on a single frequency pair. Grows with your organization's needs.

Remote Management

Comprehensive remote diagnostics and control capabilities. Monitor status, adjust settings, and troubleshoot issues without site visits.

Technical Specifications

Frequency Range136-174 MHz (VHF) / 403-470 MHz (UHF) / 350-390 MHz (350 MHz)

Channel CapacityUp to 1000 channels

RF Output Power25-45W (VHF), 25-40W (UHF), 25-35W (350 MHz)

Power Supply100-240V AC, 50/60Hz or 11.0-14.4V DC

Power Consumption (Standby)≤ 30W

Power Consumption (Full Load)≤ 150W

Operating Temperature-30°C to +60°C (-22°F to +140°F)

Storage Temperature-40°C to +85°C (-40°F to +185°F)

Humidity5% to 95% RH, non-condensing

Dimensions (H x W x D)88 x 483 x 450 mm (2U rack mount)

Weight12.5 kg

Receiver Sensitivity (Analog)0.22 μV typical (12 dB SINAD)

Receiver Sensitivity (Digital)0.22 μV typical (BER 5%)

Adjacent Channel Selectivity≥70dB @ 12.5kHz / ≥80dB @ 20/25kHz

Intermodulation Suppression≥70dB typical

Spurious & Harmonics≤ -70dBc (≤ 1W), ≤ -60dBc (> 1W)

Audio ResponseTIA603D compliant, ±1.5dB

Audio Distortion≤3% typical

Modulation4FSK Digital, 12.5/20/25 kHz

Digital ProtocolETSI TS 102 361-1,-2,-3 DMR Tier II & III

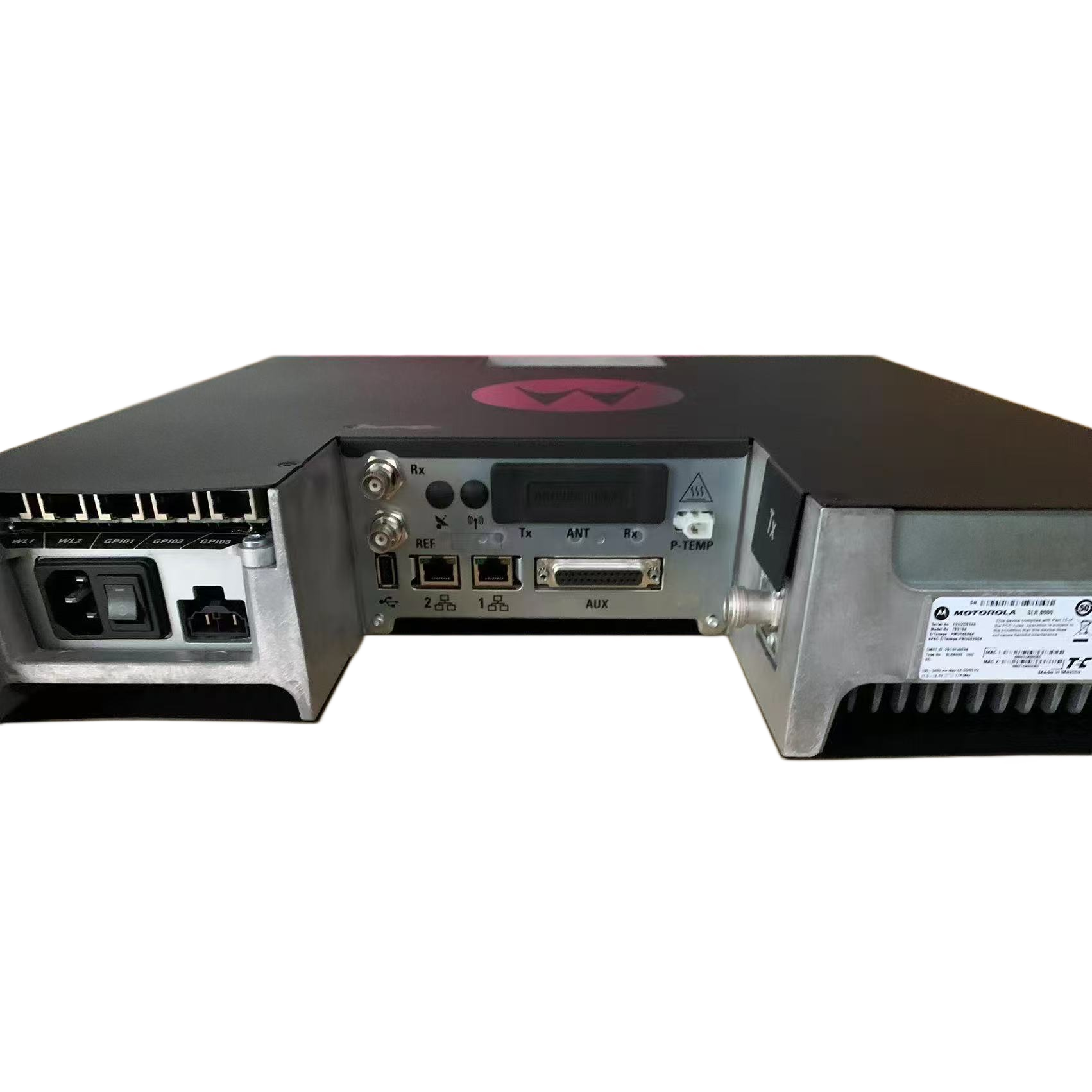

ConnectivityEthernet (RJ45), USB, DB9 (Programming), DB25 (Accessory), N-type (RF)

Network ManagementWeb browser, SNMP v2/v3, TRBOnet Enterprise compatible
