Walkie Talkies

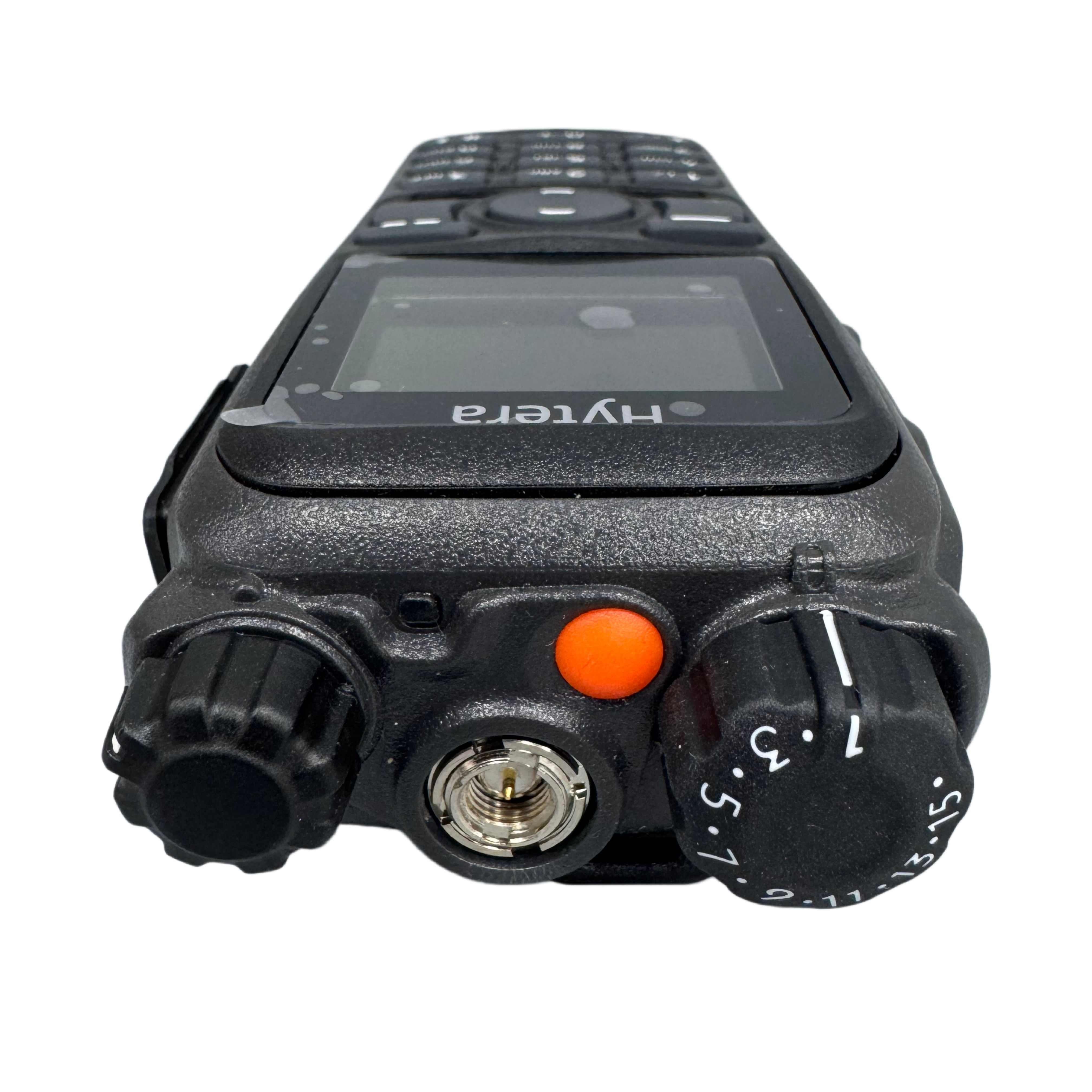

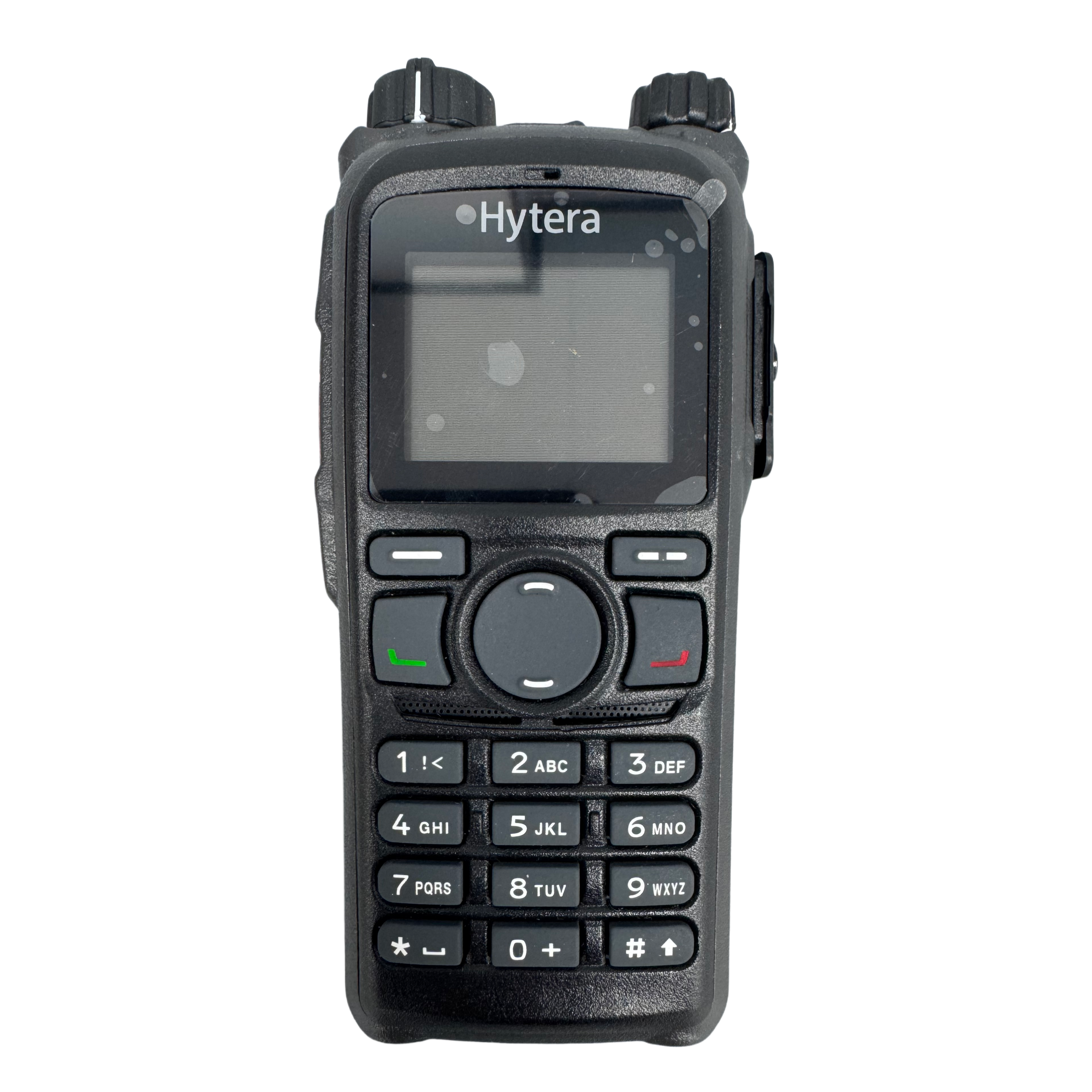

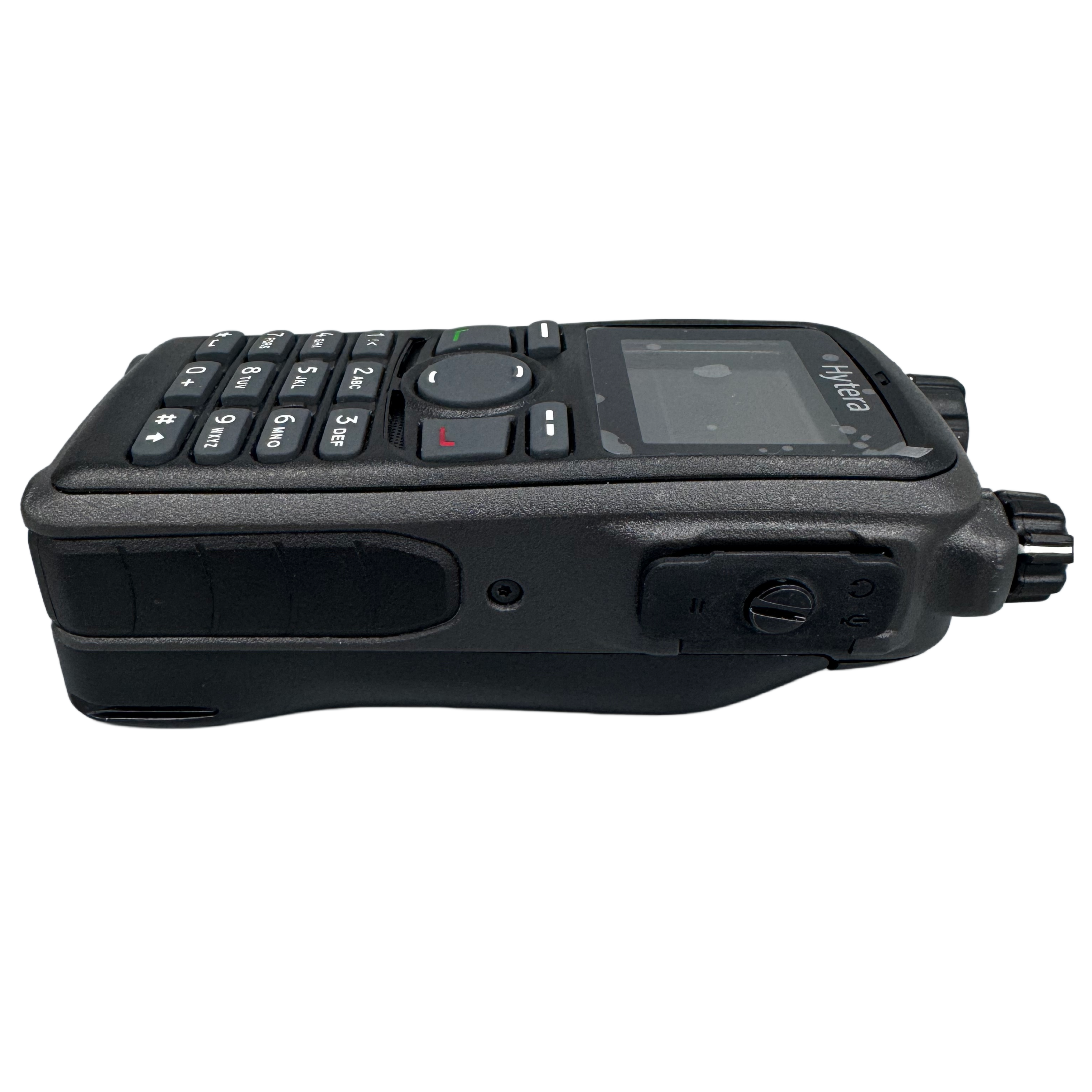

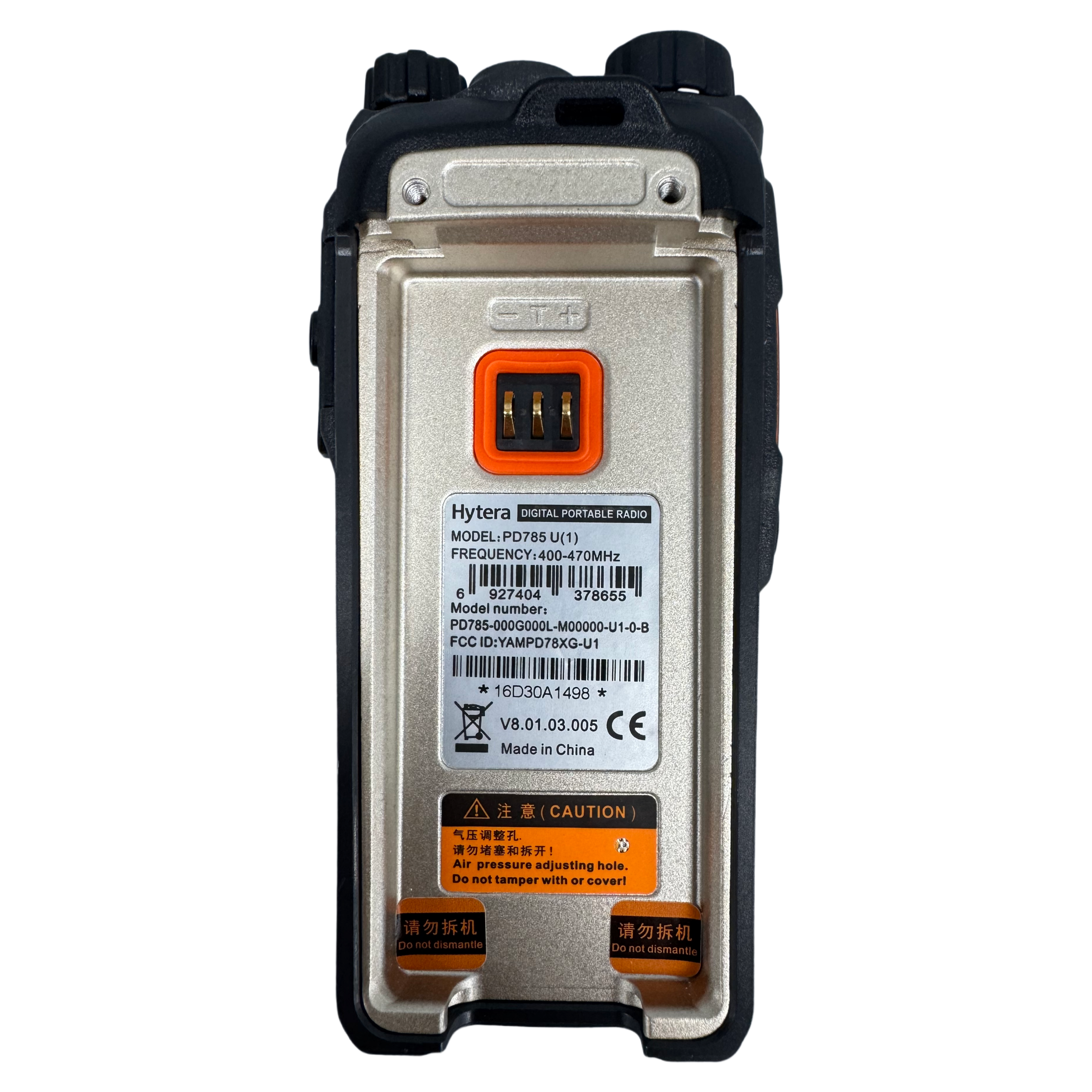

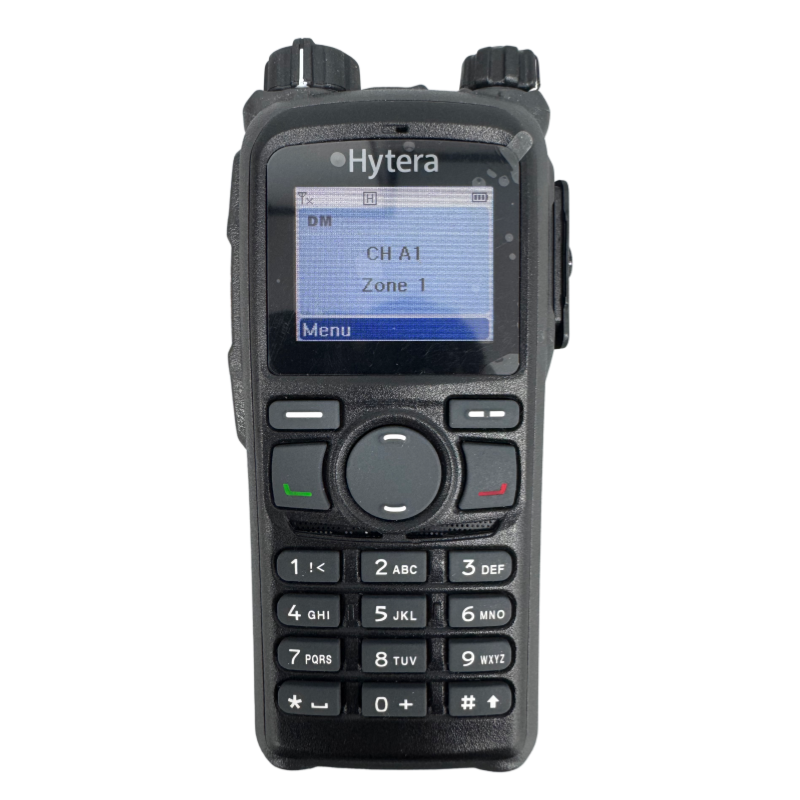

Hytera PD785

DMR Digital Portable Radio

Contact for Price

Minimum Order Quantity:10 units

The Hytera PD785/PD785G is a professional DMR digital portable radio designed according to ETSI DMR standards. Featuring an ergonomic design with a large 1.8" TFT color display and intuitive keypad layout, it delivers excellent voice quality and reliable performance. The PD785G variant includes integrated GPS for real-time location tracking. With 1024 channel capacity and dual-slot TDMA technology, it provides efficient spectrum usage and extended battery life up to 20 hours digital operation.

IP67 Waterproof

MIL-STD-810 C/D/E/F/G

ETSI DMR Compliant

GPS (PD785G variant)

AES128/AES256 Encryption Optional

Download Datasheet (PDF)

Key Features

Excellent Voice Quality

Narrow band codec and digital error correction technologies deliver clear audio even in loud environments and at the edge of coverage.

Ergonomic Design

Large pushbuttons and separate control buttons separated by antenna for easy operation with gloves. High-resolution 1.8" transflective color display.

Extended Battery Life

TDMA technology improves battery life by approximately 40% compared to analog. Up to 20 hours digital / 15 hours analog operation.

GPS Tracking (PD785G)

Optional GPS variant provides real-time position data, text messaging with location, and distance calculation to other GPS radios.

Technical Specifications

Frequency RangeVHF: 136-174 MHz / UHF: 400-470 MHz

Channel Capacity1024 channels

Zone Capacity64 zones (up to 16 channels each)

Channel Spacing12.5/20/25 kHz (analog), 12.5 kHz (digital)

Operating Voltage7.4V (nominal)

Standard Battery2000mAh Li-ion

Battery Life (Analog)VHF/UHF: ca. 15 hours (14.5h with GPS)

Battery Life (Digital)VHF/UHF: ca. 20 hours (19.5h with GPS)

Display1.8" TFT color, 160x128 pixels, 65,536 colors

KeypadFull alphanumeric keypad with programmable keys

Protection RatingIP67 (waterproof 1m for 30min)

Military StandardMIL-STD-810 C/D/E/F/G

GPS Accuracy (PD785G)<10m horizontal, TTFF cold <1min, warm <10s

Audio Output0.5W nominal

Modulation4FSK digital (12.5kHz), AMBE++ vocoder

Digital ProtocolETSI TS 102 361-1/2/3 DMR Tier II & III

Dimensions (H x W x D)125 x 55 x 37 mm (with standard battery)

Weight355g (with antenna and battery)

Operating Temperature-30°C to +60°C

Frequency Stability±0.5 ppm
